ON-7801 4.0T
- 4,000Kg (8818LBS.) lifting capacity.
- 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms.
- Durable cylinders with anti-surge valves.

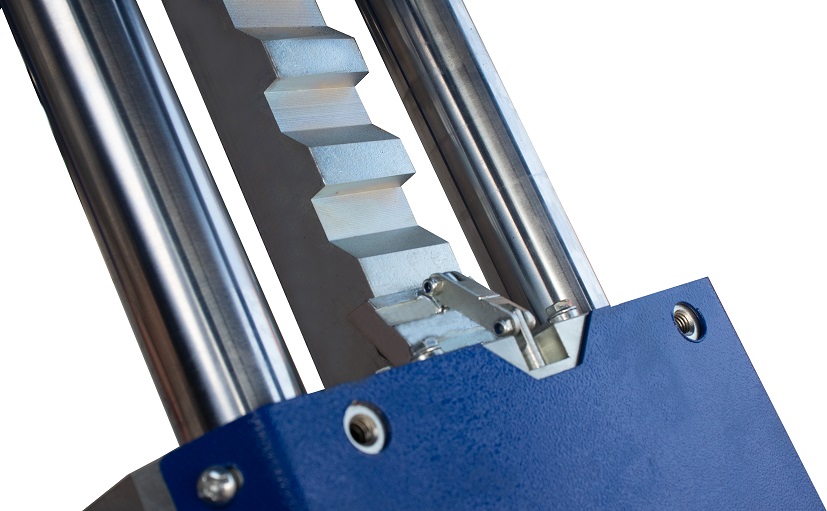

- Pneumatic or electrical safety lock release system.

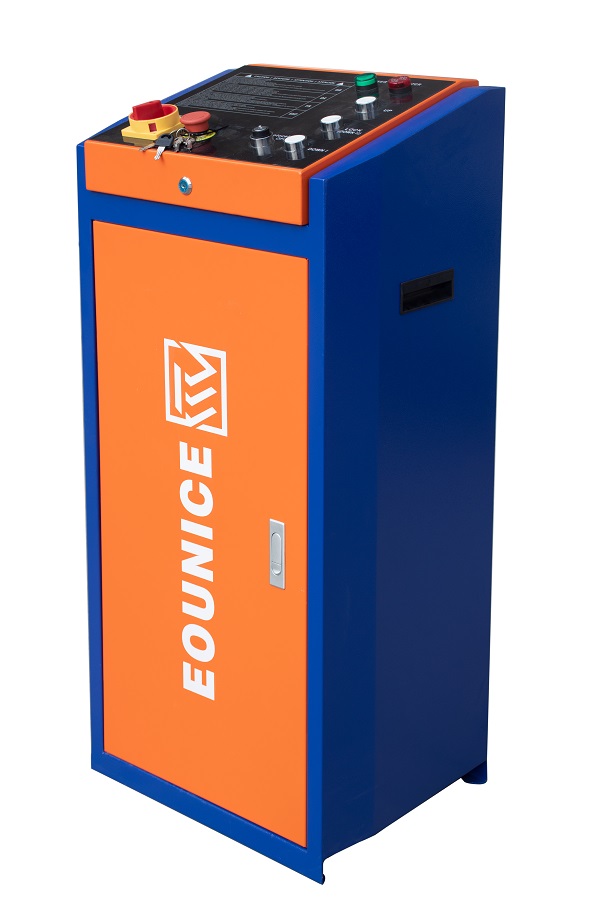

- 24volt electrical control system.
- Self-lubricated bushing and bearing.
- Low profile design, min height is only 110mm (4 5/16”).

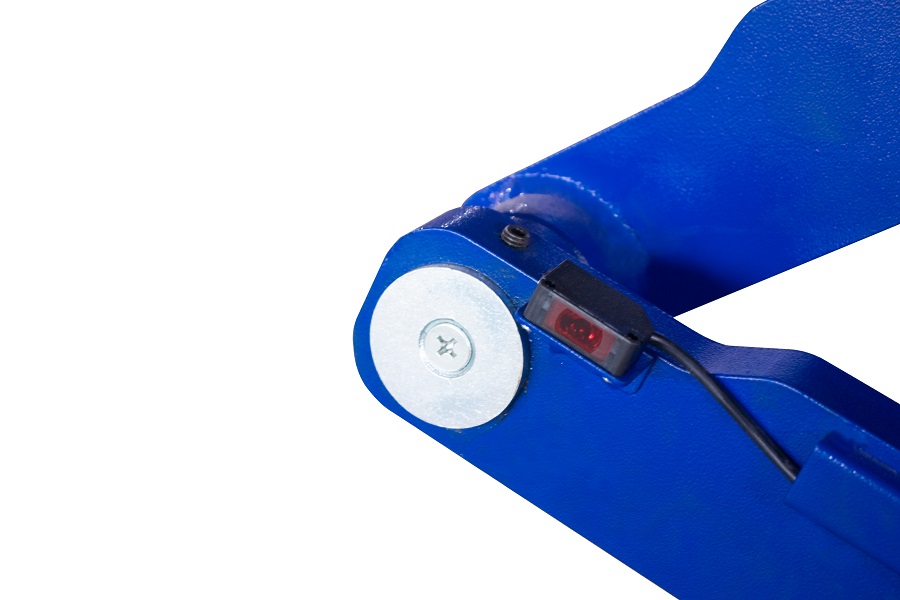

- Standard with height limit switch.

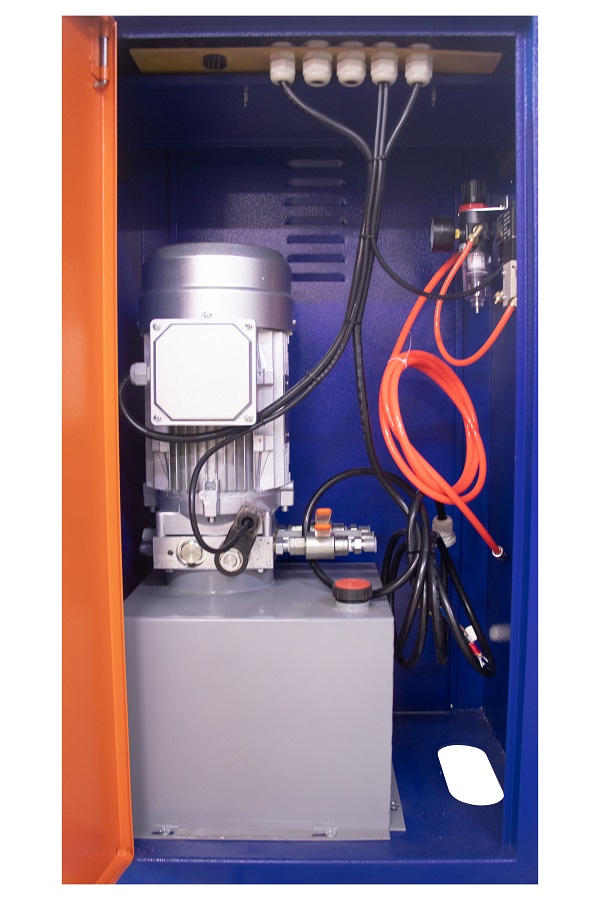

- Standard with aluminum motor power unit.
TECHNICAL DATA:
| Model | 7801 3.5T | 7801 4.0T |
| Lifting Capacity | 3,500kgs (8,000LBS) | 4,000kgs (9,000LBS) |
| Lifting Time | ≤50S | ≤50S |
| Lifting Height | 1850mm (72 7/8”) | 2040mm (80 5/16”) |
| Minimum Height | 110mm (4 5 /16”) | 110mm (4 5 /16”) |
| Runway Length | 1465mm (57 11/16”) | 1465mm (57 11/16”) |

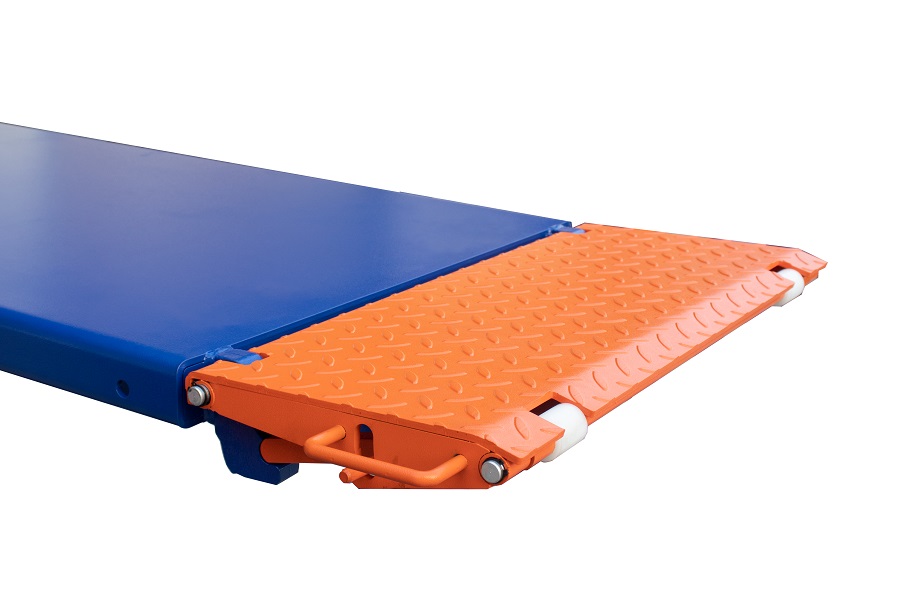

| Overall Length (Inc.Ramps) | 2085mm (82 1/16”) | 2085mm (82 1/16”) |
| Runway Width | 650mm (25 5/8”) | 650mm (25 5/8”) |
| Shipping Weight | 913kgs (2,013LBS) | 973kgs (2,145LBS) |
| Motor Power | 2.2KW (3HP) | 3.0KW (4HP) |
OVERALL DEMENSION:
Custom Options
- OEM/ODM service can be offered
- Lift color can be offered as customer request.
- Can be optional electric safety lock release.
Features and Benefits
- 低调设计，最小高度仅为110毫米（4 5/16英寸），适用于低chassis车辆。

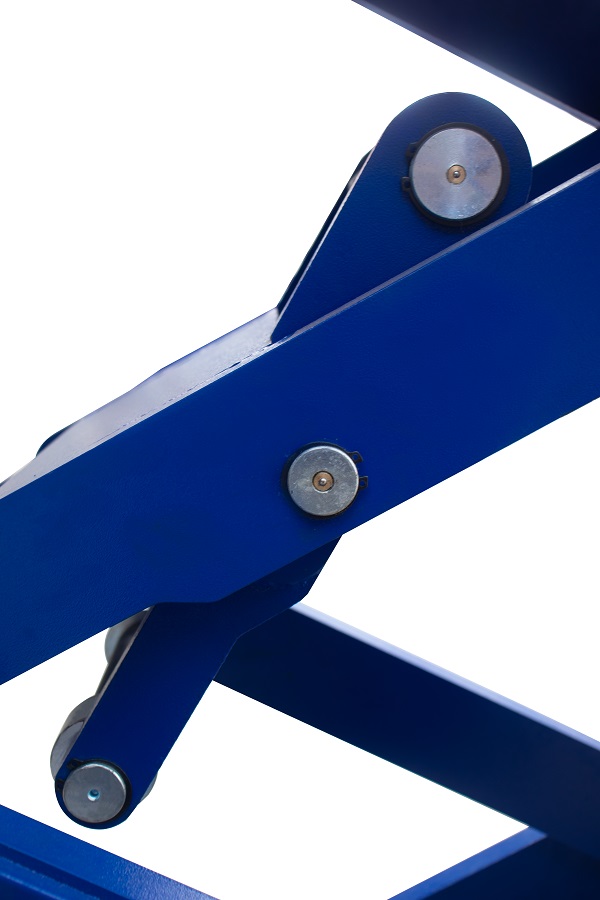

- 剪刀臂由整个高质量的合金钢板切割，剪刀臂的安装孔是焊接套筒的，这可以确保设备的刚度和强度。

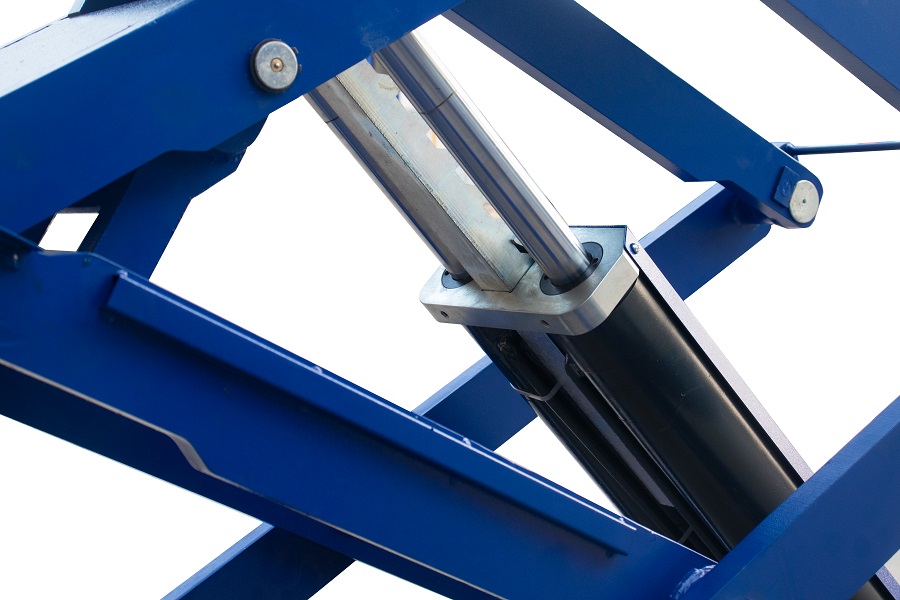

- 大直径二对二同步缸（主缸80mm），易于启动，可以有效地提高液压部分的使用寿命；液压缸的关节配备了抗软管爆裂油门阀，这可以防止软管爆裂引起的事故。
- 主要的结构部件是由机器人焊接的，具有良好的焊接一致性，高强度和美丽的焊接接缝。
- 使用进口喷涂设备喷涂，高温固化，用进口粉末喷涂结构零件，可以确保粘附，鲜艳的颜色和美丽。
列=“ 1”]
