Key Features
- Parks two cars in the space of one
- Simple design, compact and reliable
- Easy to operate with minimal maintenance
- High load capacity up to 1550 kg per vehicle
- Safety locks and emergency stop system
- Works in residential, commercial, and underground parking
- Durable steel structure for long service life
- Saves space and construction costs
Technical Specifications

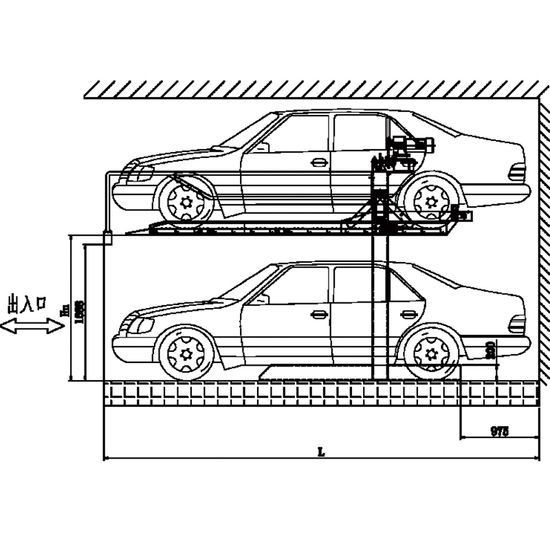

| Model | ULTRA BIG CAR (T1) | ULTRA BIG CAR (T2) | BIG CAR (D) |
|---|---|---|---|
| Length (L) | 5500 mm | 5400 mm | 5200 mm |
| Width (W) | (2550+200) mm | (2450+200) mm | (2350+200) mm |
| Height (H) | 3500 mm | 3500 mm | 3500 mm |
| Car Size (Width) | 5300 mm | 5200 mm | 5000 mm |
| Car Size (Height) | 2000 mm | 1900 mm | 1850 mm |
| Load Capacity | 1550 kg | 1550 kg | 1550 kg |
| Lift Motor Power | ≤2000 W | ≤2000 W | ≤2000 W |
| Speed Lift | 2.2 kW (2.0–4.0 m/min) | 2.2 kW (2.0–4.0 m/min) | 2.2 kW (2.0–4.0 m/min) |
Two-Layer Parking Lift – The Ultimate Space-Saving Solution
A two-layer parking lift is a modern, efficient solution designed to maximize parking space in areas where every square meter counts. This innovative lift system allows you to park two cars in the same space that would typically hold only one. With its simple yet effective lifting mechanism, this lift is perfect for residential areas, commercial parking lots, and garages with limited space.
Uses of the Two-Layer Parking Lift
It operates using a compact lifting mechanism that allows vehicles to be stored one on top of the other. This system makes the most out of small or crowded areas, especially where conventional parking methods fall short. By simply lifting the upper car, the lower parking space is easily accessed, allowing you to park or remove cars with ease. This setup is especially useful in urban environments where parking space is at a premium.
Ideal Applications
This lift can be used in various settings, providing flexibility for different needs. Some of the ideal applications include:
- Old Residential Communities: Many older residential areas have limited parking space. The two-layer parking lift provides an excellent solution to maximize available space.
- Private Villas: Homeowners with limited garage space can install it to store multiple vehicles while maintaining aesthetic appeal and accessibility.
- Underground Parking Lots: In locations where space is constrained, such as underground parking, this lift is the perfect solution to maximize parking capacity without expanding the footprint.
This innovative technology is transforming how people park in both residential and commercial environments. Its simplicity, ease of use, and compact design make it a popular choice for those looking to optimize parking efficiency.
Exploring More Parking Solutions: Four Post Car Lift & Scissor Car Lift
While the two-layer parking lift is a fantastic solution for maximizing space, we also offer other innovative parking systems that can cater to different needs. If you’re looking for versatility and even more parking options, check out our Four Post Car Lift and Scissor Car Lift.
Troubleshooting the Motor of a Parking Lift System
Every once in a while, technical issues can arise in any mechanical system, and your two-layer parking lift is no exception. If you encounter problems with the lift motor, we recommend reading through this comprehensive troubleshooting guide. The article provides valuable insights into diagnosing and solving issues with the motor of your parking lift system.
For further assistance and detailed troubleshooting steps, visit the following webpage.
Get Instant Quote in 24 Hours
Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:
35,000m² Vehicle lift production workshop.
Skillful technical research more than 5 years.
ISO 9001 quality management system certificated and CE approved by European Union.
Over 50 automatic production line equipments.
