Cantilever Car Parking Lift

Features

• Space-saving cantilever design for easy vehicle access
• Holds up to 2350 kg on the first floor
• Gear motor + chain drive ensures smooth and stable operation
• Lifting speed 4 m/min, transversing speed 8 m/min
• User-friendly digital keypad or IC card operation
• High-quality welding for long-term durability
• Low maintenance requirements with minimal moving parts

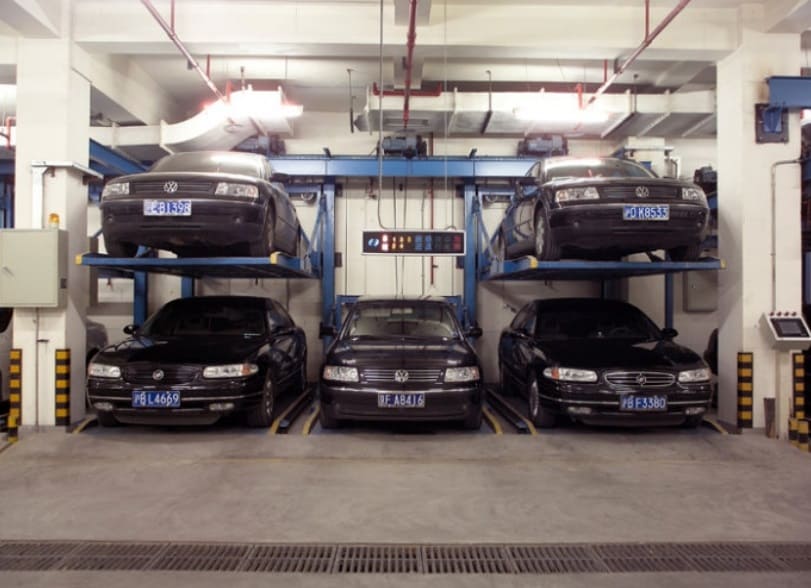

• Suitable for 5-car garage setups

Technical Specifications

Garage Type	PSHLD (5 cars)
Car size (LWH)	Length mm	5000
	Width mm	1850 (inc. Rear mirror 2050)
	Height mm	1500~1850
	Gross weight kg	First floor 2350, second 1700~2000
Parking facilities	Parking unit width mm	2400~2500
	Length mm	5200
	One layer height mm	1850
	Drive way	Gear motor + chain
Rated speed (m/min)	Lifting	4
	Transversing	8
Power Unit (kw)	Lifting	2.2
	Transversing	0.2
Operation way		Digital keypad / IC card
Drive way		Reverse into the garage, Forward out of the garage
Power		Three phase 5 wire AC; 380V/50Hz

Cantilever Car Parking Lift – Efficient and Space-Saving Parking Solution

The Cantilever Car Parking Lift is a modern and space-efficient parking system designed for garages, residential complexes, and commercial facilities where maximizing vertical and horizontal space is essential. Unlike conventional parking systems, it uses a cantilever structure that supports the vehicle platform without the need for additional posts on one side, making entry and exit smoother. This design is particularly useful in narrow spaces, allowing vehicles to be parked and retrieved quickly with minimal maneuvering.

Why Cantilever Car Parking Lift is Different from Two-Floor Car Elevator

While both lifts are designed to utilize vertical space, they operate on very different principles:

Working Principle:
The Two-Floor uses a full lifting platform to transport vehicles vertically between two floors.

The Cantilever Lift, on the other hand, uses a gear motor + chain drive to lift and traverse the parking platform, allowing cars to be stored side-by-side or stacked without a traditional elevator shaft.

Structural Design:
Two-Floor is fully enclosed within a structure, suitable for buildings with vertical vehicle transfer needs.

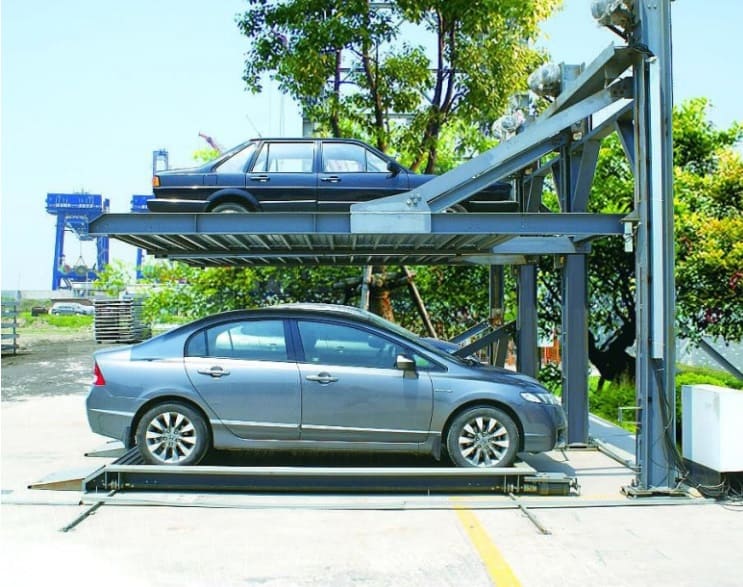

Cantilever Parking is open on one side, supported by a cantilever beam, making it ideal for garages with limited access space.

High Quality, Low Maintenance, and Long Lifespan

The Cantilever Car Parking Lift is built with premium-grade materials, precision welding, and high-strength chains for durability. Its design minimizes moving parts, reducing maintenance costs. With proper care—such as regular lubrication—it can deliver reliable service for many years, making it a cost-effective investment for property owners and facility managers.

Maintaining Your Car Parking

To ensure optimal performance, regular maintenance is essential—especially proper lubrication of moving parts and chain drives. Learn more about how to oil a car lift in this helpful guide Watch Maintenance Video.
