Multi Car Parking Lift

Features

• Structure: Combination of lifting + traversing + simple lifting
• Capacity: 2–5 floors above ground, 1–2 floors underground
• Space Efficiency: Increases parking density without increasing land use
• Noise Level: Low-noise motors for quiet operation
• Vehicle Compatibility: Supports ultra big, big, and standard vehicles
• Construction Quality: Heavy-duty steel frame with corrosion protection
• Safety: CE and ISO certified with multiple safety locks

Technical Specifications

Item / Model	Ultra Big Car (T1)	Ultra Big Car (T2)	Big Car (D)
Length (mm)	6100	6000	5800
Width (mm)	2500*N + 150	2450*N + 150	2400*N + 150
Height (mm)	Custom per design	Custom per design	Custom per design
Car Length (mm)	5300	5200	5000
Car Width (mm)	2000	1950	1900
Car Height (mm)	1550–1750	1550–1750	1550–1750
Load Capacity (kg)	≤2000	≤2000	≤2000
Power Unit – Lift Motor	2.2 kW	2.2 kW	2.2 kW
Power Unit – Traversing Motor	0.2 kW	0.2 kW	0.2 kW
Speed – Lifting	4.0–7.0 m/min	4.0–7.0 m/min	4.0–7.0 m/min
Speed – Traversing	7.0–10.0 m/min	7.0–10.0 m/min	7.0–10.0 m/min

Multi Car Parking Lift – Advanced Space Optimization

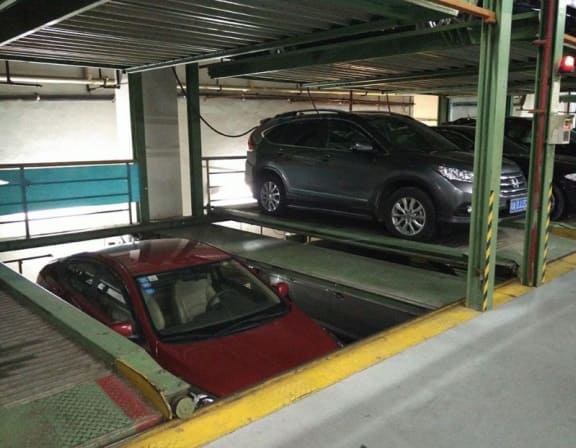

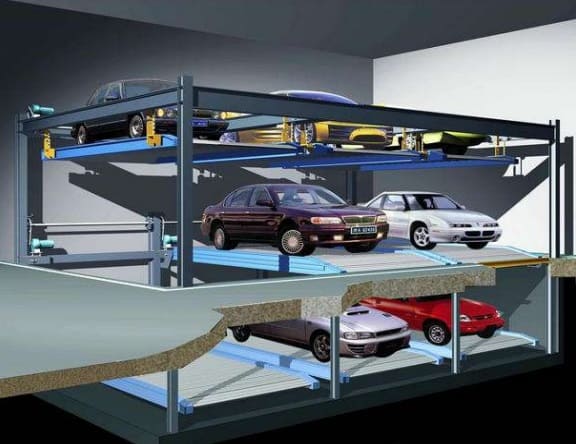

The Multi Car Parking Lift is an intelligent solution for maximizing parking capacity in areas where every square meter counts. Using a combination of lifting and traversing systems, it can accommodate vehicles both above and below ground. Its “ground + underground” structure supports up to five floors above and two floors underground, making it an ideal choice for urban areas, commercial buildings, and residential complexes that require high-density parking without acquiring more land.

How multi Car Parking Lift It Works?

On the ground level, lifting and transversing platforms move vehicles vertically and horizontally to available spaces. The underground section uses dedicated lifting platforms, making full use of otherwise unused pit space. This smooth integration allows for quick vehicle storage and retrieval while ensuring a clean and organized parking layout. Each unit runs quietly with advanced motors, minimizing operational noise in busy environments.

Comparison with Cantilever Car Parking Lift

While cantilever car parking lifts work well for smaller-scale parking, the Multi Car Parking Lift is built for large, high-traffic applications. Its structure allows for more floors, greater vehicle capacity, and flexibility in accommodating different car sizes, including ultra big cars and large sedans. The multi-level design is more versatile, efficient, and adaptable for various property types, making it a superior choice for maximizing return on investment.

Importance of Regular Maintenance

The Multi Car Parking Lift is a complex system of motors, platforms, and steel structures that must be kept in top condition. Routine maintenance ensures:

• Consistent performance – Smooth lifting and traversing without jerks or delays.
• Noise control – Keeps operation quiet for residential or commercial use.
• Longer equipment life – Prevents early wear on motors and mechanical parts.
• Safety compliance – Maintains CE certification standards.
• Operational cost savings – Minimizes unexpected breakdowns and downtime.

Skipping maintenance can lead to reduced safety, slower operation, and higher repair costs over time.

Built to Last with CE Certification

Eounice’s Multi Car Parking Lifts are manufactured using advanced welding and cutting technology for exceptional durability. Every unit is CE and ISO certified, meeting rigorous safety and performance requirements. Designed for long-term reliability, the system delivers exceptional performance whether installed in a compact residential lot or a large-scale commercial garage.
