Six Layer Parking System

Features

• High-capacity efficiency
• Advanced safety
• Intelligent operation
• Load capacity of up to 2000 kg per space
• Retrieved smoothly
• Reducing long-term operational costs
• Retrieved smoothly without congestion

Technical Specifications

Item	Model	Ultra Big Car (T1)	Ultra Big Car (T2)	Big Car (D)
Size	Length (mm) (L)	6500	6400	6200
	Width (mm) W=(Pn×200)+200	2600*N+200	2550*N+200	2500*N+200
	Height (mm) (H)	5400–10350	5400–10350	5400–10350
Car Size	Length (mm)	5300	5200	5000
	Width (mm)	2000	1950	1900
	Height (mm)	1550	1550	1550
Load Capacity	Kg	≤2000	≤2000	≤2000
Power Unit	Lift Motor	2nd–4th floor: 2.2 kW; 5th–6th floor: 3.7 kW	Same	Same
	Traversing Motor	0.2 kW	0.2 kW	0.2 kW
Speed	Lift	4.0–7.0 m/min	4.0–7.0 m/min	4.0–7.0 m/min
	Traversing	7.0–10.0 m/min	7.0–10.0 m/min	7.0–10.0 m/min

Six Layer Parking System – Advanced Multi-Level Car Parking Solution

The Six Layer Parking System is a state-of-the-art automated parking solution designed to maximize vertical space while ensuring smooth and reliable car storage. With modern cities facing constant challenges of limited land and rising vehicle numbers, this system offers an innovative approach to increasing parking capacity without expanding ground area. It is especially suitable for commercial buildings, high-density residential complexes, and urban centers where efficient use of space is essential.

Detailed Specifications and Features

Engineered with precision, the six layer parking system is built to accommodate a wide range of vehicles including big cars and ultra-big cars.

• Size Flexibility: With lengths ranging from 6200 mm to 6500 mm and adjustable widths based on the number of columns (from 2500 mm to 2600 mm), the system ensures compatibility for different car dimensions.
• Car Compatibility: It can store vehicles up to 5300 mm in length, 2000 mm in width, and 1550 mm in height with a maximum load capacity of 2000 kg per space.
• Motorized Power: The system operates with advanced lifting motors (2.2 kW for lower floors and 3.7 kW for upper floors) and traversing motors of 0.2 kW, ensuring energy-efficient yet powerful operation.
• Operational Speed: Lifting speeds range from 4.0–7.0 m/min, while traversing speeds reach 7.0–10.0 m/min, ensuring quick and reliable vehicle retrieval.

This makes the six layer parking system a durable, safe, and highly efficient parking solution that maximizes vertical land use while reducing operational delays.

Comparison: Six Layer Parking System vs. Two-Floor Car Elevator

When compared to a Two-Floor Car Elevator, the Six Layer Parking System offers significantly higher parking density and better adaptability.

• Capacity: While a two-floor elevator typically serves a limited number of vehicles, the six layer system multiplies capacity up to six times by stacking cars vertically.
• Operation: The two-floor elevator relies solely on vertical lifting, whereas the six layer system combines vertical and horizontal movement, optimizing space usage.
• Scalability: A two-floor elevator suits smaller installations (such as residential garages), but the six layer parking system is ideal for large-scale commercial or urban projects requiring mass parking.
• Efficiency: With multiple access points and advanced control, the six layer system minimizes waiting times compared to the two-floor elevator, which often requires sequential car movement.

This comparison highlights that while the two-floor elevator is suitable for compact requirements, the six layer system is the superior choice for high-capacity, space-optimized projects.

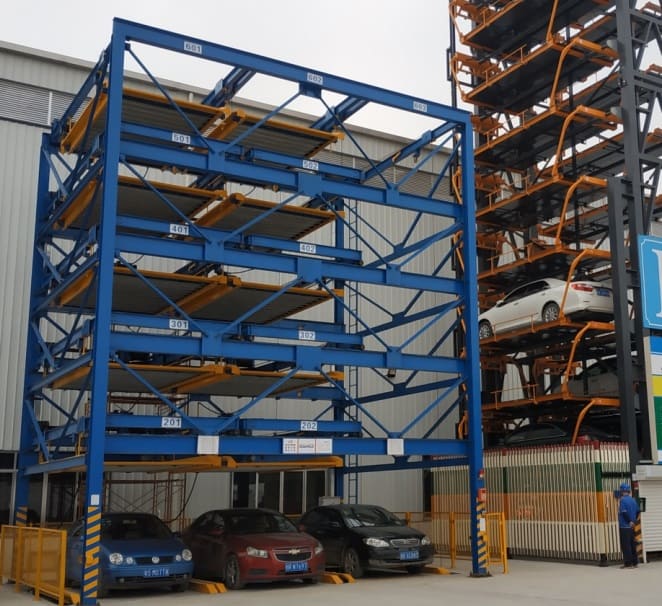

Working of the Six Layer Parking System

The working mechanism of the six layer parking system is based on coordinated lifting and traversing operations.

• Each parking space is equipped with a vehicle loading plate.
• Except for the top floor, each level has one empty space that enables movement.
• Top Floor: Parking spaces can only be raised or lowered.
• First Floor: Spaces move only horizontally.
• Middle Floors: Spaces can move both vertically and horizontally.
• To retrieve a car, the system raises, lowers, and shifts the vehicle’s loading plate to the ground floor, where the driver can easily drive out.

This intelligent design ensures smooth traffic flow, minimal waiting times, and safe vehicle handling.

Why Choose a Six Layer Parking System?

• Maximizes vertical space in crowded urban areas.
• Suitable for different car sizes including big and ultra-big models.
• Energy-efficient motors reduce operational costs.
• Durable engineering guarantees long-term performance.
• Scalable solution for residential, commercial, and public parking needs.
