Features
- Accommodates up to 2000 kg per vehicle
- Compatible with ultra big and standard car sizes
- Strong 2.2 kW lift motor and 0.2 kW transversing motor
- Fast lifting speed of 4.0–7.0 m/min
- Transversing speed up to 10.0 m/min for quick access
- Sturdy construction for long-term reliability
- Flexible column width design: Wp × N + 150 mm
Technical Specifications
| Item | Model | Ultra Big Car (T1) | Ultra Big Car (T2) | Big Car (D) |
|---|---|---|---|---|
| Size | Length (mm) | 5900 | 5800 | 5600 |
| Width (mm) | 2500×N+150 | 2450×N+150 | 2400×N+150 | |
| Height (mm) | 3600 | 3600 | 3600 | |
| Car Size | Length (mm) | 5300 | 5200 | 5000 |
| Width (mm) | 2000 | 1950 | 1900 | |
| Height (mm) | 1550~1750 | 1550~1750 | 1550~1750 | |
| Load Capacity | Kg | ≤2000 | ≤2000 | ≤2000 |
| Power Unit | Lift Motor | 2.2 kW | 2.2 kW | 2.2 kW |
| Transversing Motor | 0.2 kW | 0.2 kW | 0.2 kW | |
| Speed | Lift | 4.0~7.0 m/min | 4.0~7.0 m/min | 4.0~7.0 m/min |
| Transversing | 7.0~10.0 m/min | 7.0~10.0 m/min | 7.0~10.0 m/min |

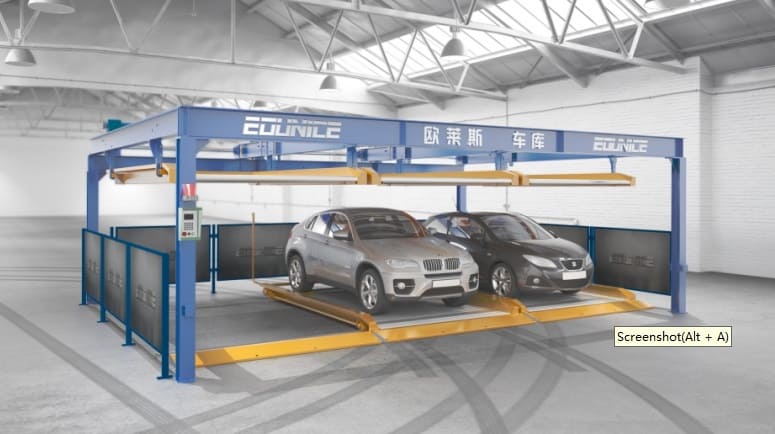

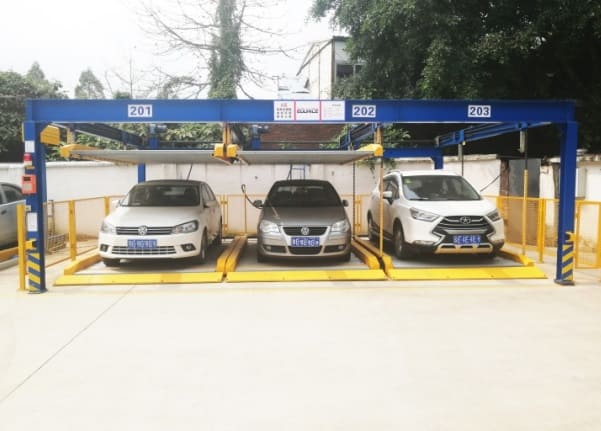

Two-Floor Car Elevator – Smart Parking for Space-Saving Solutions
The Two-Floor Car Elevator is an innovative parking system designed to double parking capacity within the same footprint. Using vertical lifting, it allows two vehicles to be parked one above the other, making it an ideal choice for areas where space is limited but demand is high. Built for efficiency, safety, and durability, it offers a perfect balance between modern technology and practical use.
Working Principle of the Two-Floor Car Elevator
The system works by lifting one vehicle to the upper platform, creating space underneath for a second vehicle. Drivers can access their cars independently, depending on whether the lower or upper platform is in use. With strong hydraulic or mechanical lifting systems, the operation is smooth, safe, and reliable.
Best Places to Install a Two-Floor Car Elevator
The elevator is ideal for:
- Residential garages in urban areas
- Commercial parking spaces with high demand
- Car dealerships for vehicle display and storage
- Hotels or apartment complexes with limited ground space
Two-Floor Car Elevator vs. Underground Parking System
While both solutions save space, the Two-Floor Car Elevator is easier to install and requires less civil work compared to an Underground Parking System. Underground systems offer more capacity and a cleaner look since the equipment is hidden, but they need deeper excavation and higher installation costs. Choosing between the two depends on your available budget, space, and long-term parking needs.
Why Choose Eounice?
Eounice’s lifts stands out for its precision engineering and advanced manufacturing. We use the world’s top welding and laser cutting technology, ensuring high strength and long-lasting performance. Each unit is CE and ISO certified, guaranteeing compliance with global safety and quality standards. Whether for residential or commercial use, our elevator is built to perform in the most demanding environments.
Automated Parking Systems – The Future of Urban Mobility
Automated parking systems take space optimization to the next level by using fully automated lifts, conveyors, and software to manage parking without human intervention. They reduce the need for wide driving lanes, maximize capacity, and streamline parking operations. Learn more about how these systems work and their benefits in this automated parking system guide.
Get Instant Quote in 24 Hours
Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:
35,000m² Vehicle lift production workshop.
Skillful technical research more than 5 years.
ISO 9001 quality management system certificated and CE approved by European Union.
Over 50 automatic production line equipments.
