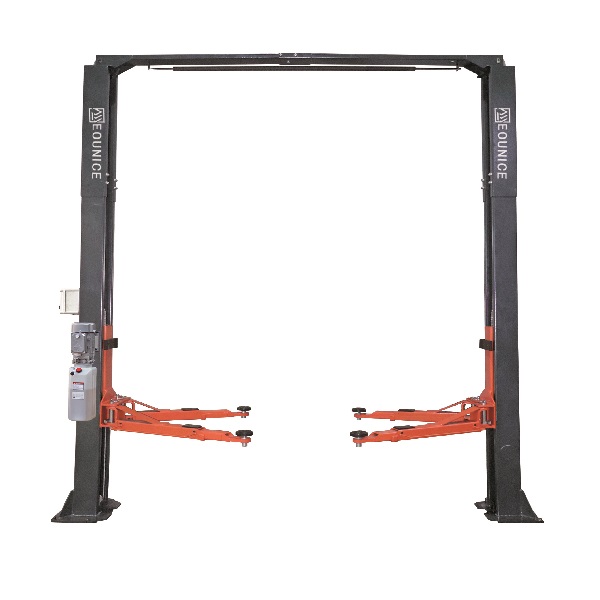

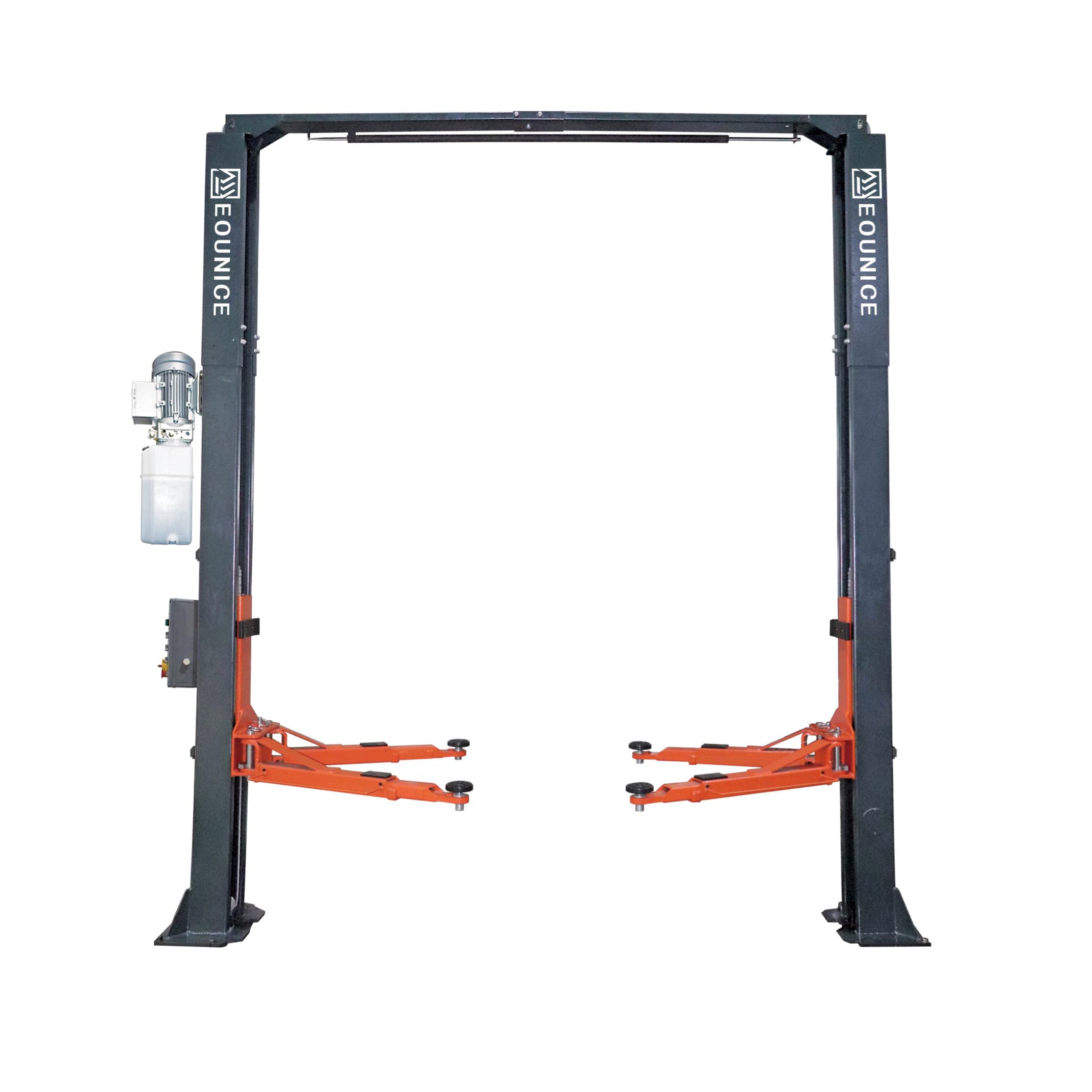

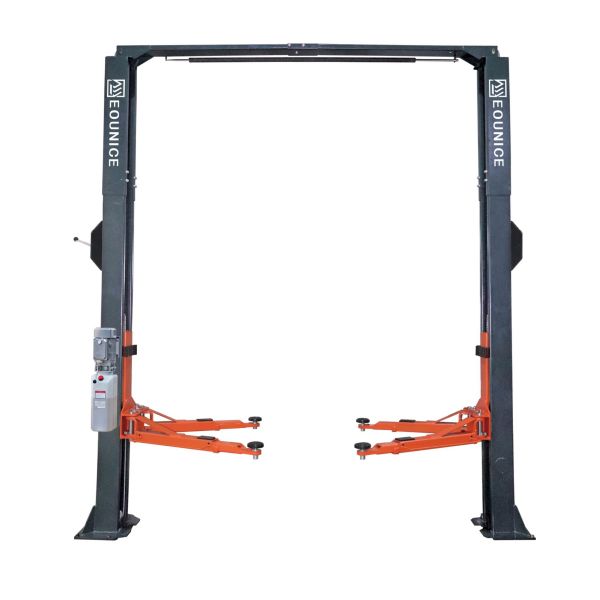

Garage Car Clear Floor Two Post Lift ON-7214E
4,200KG(9,300LBS)
Electrical release and dual chain drive cylinders.
- 4,200Kg (9,300LBS.) lifting capacity.
- 1920mm (75 9/16”) lifting height suitable for various operators.

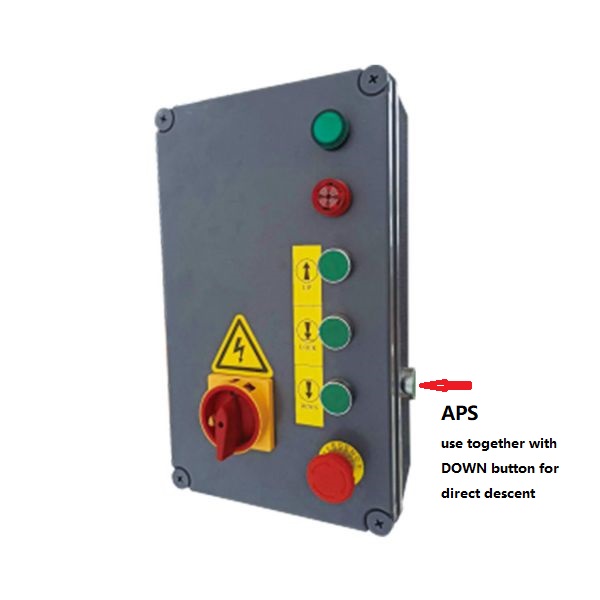

- Electrical lock release with APS technical,24volt operation.
- Durable chain drive cylinder in each column carries with anti-surge valves.

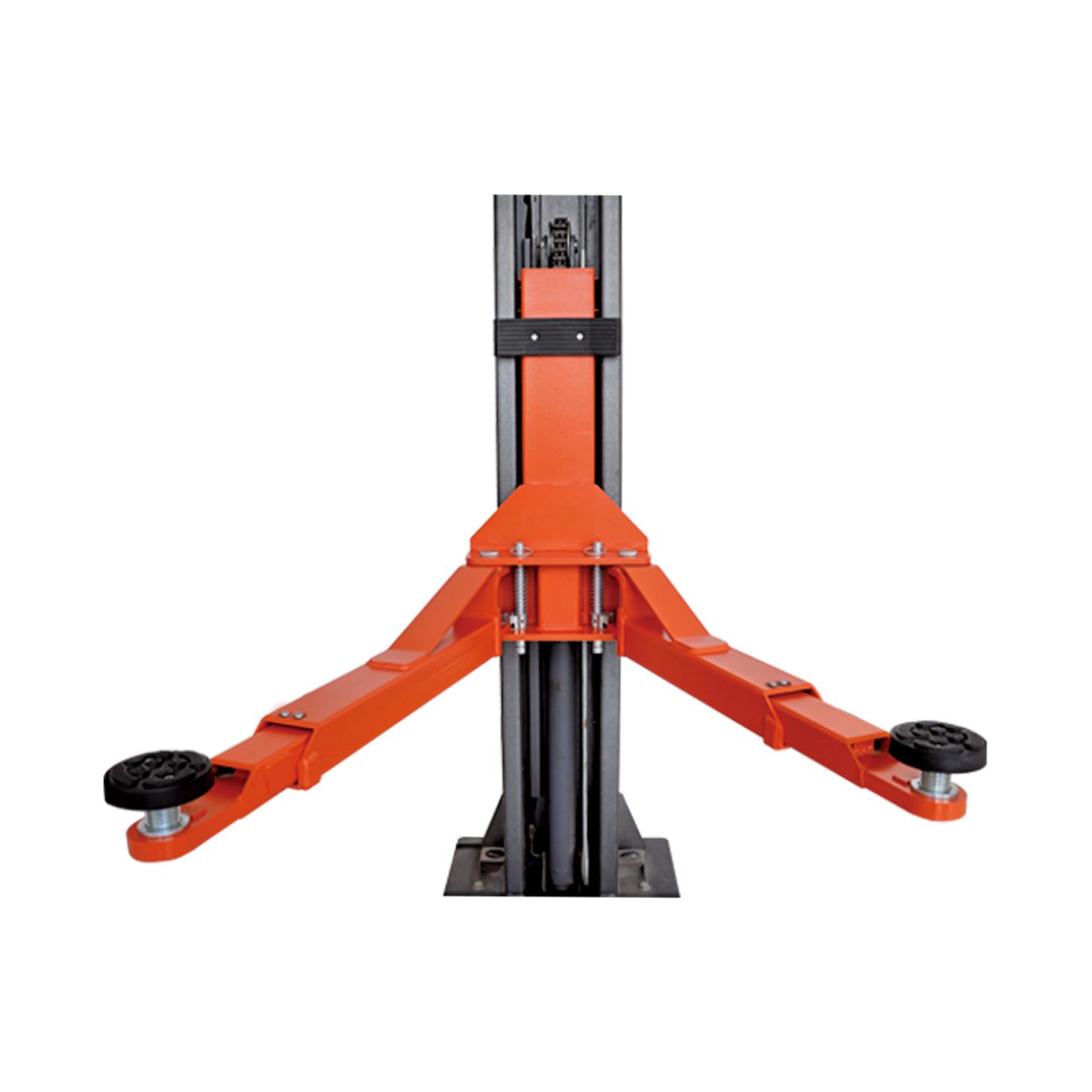

- Standard with 4 two-stage lifting arms.

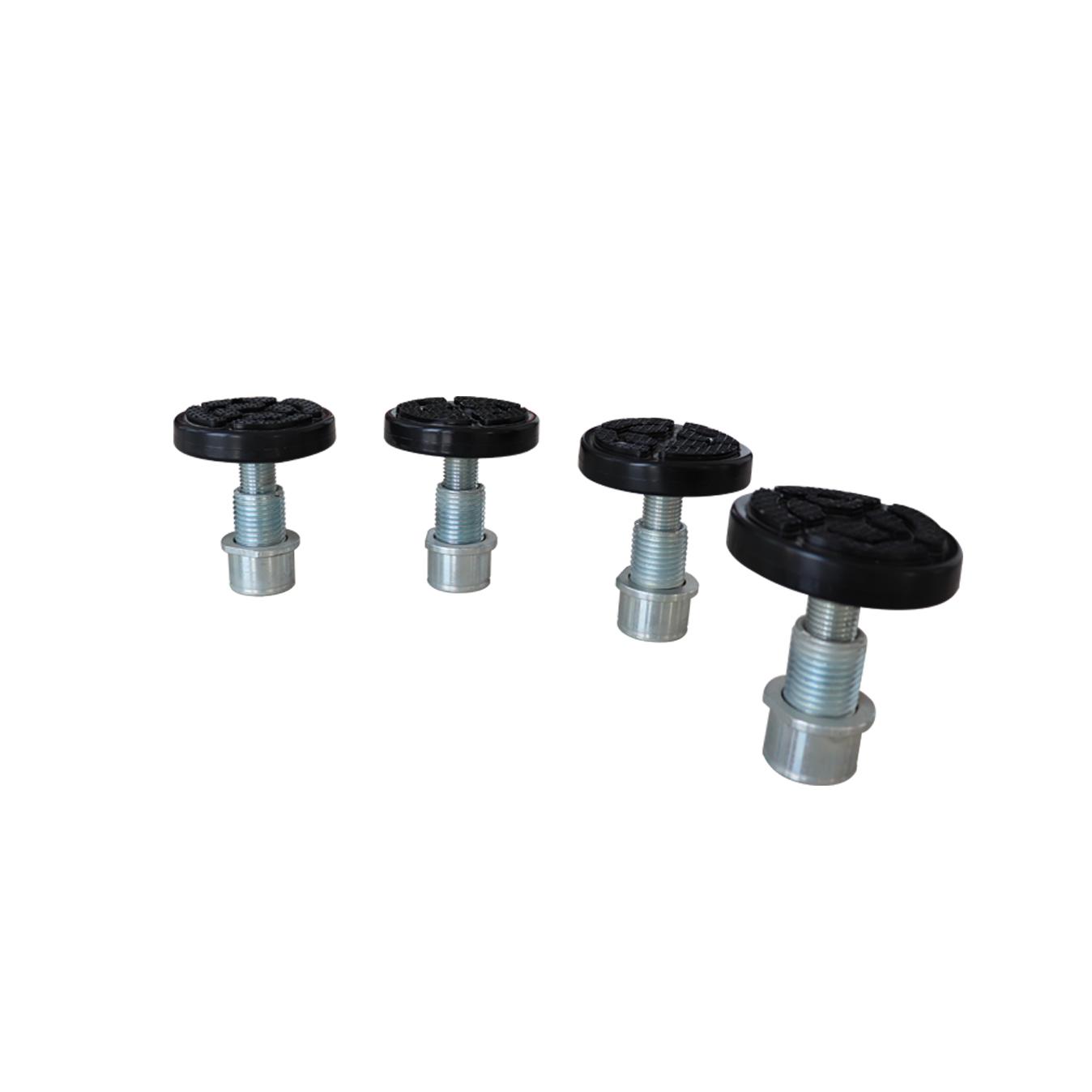

- Screw-up rubber pads with min height 95mm (3 3/4”).
- Standard with curtain inside column and foot guard.
- Standard with high limit switch.
- Overhead safety protection device.

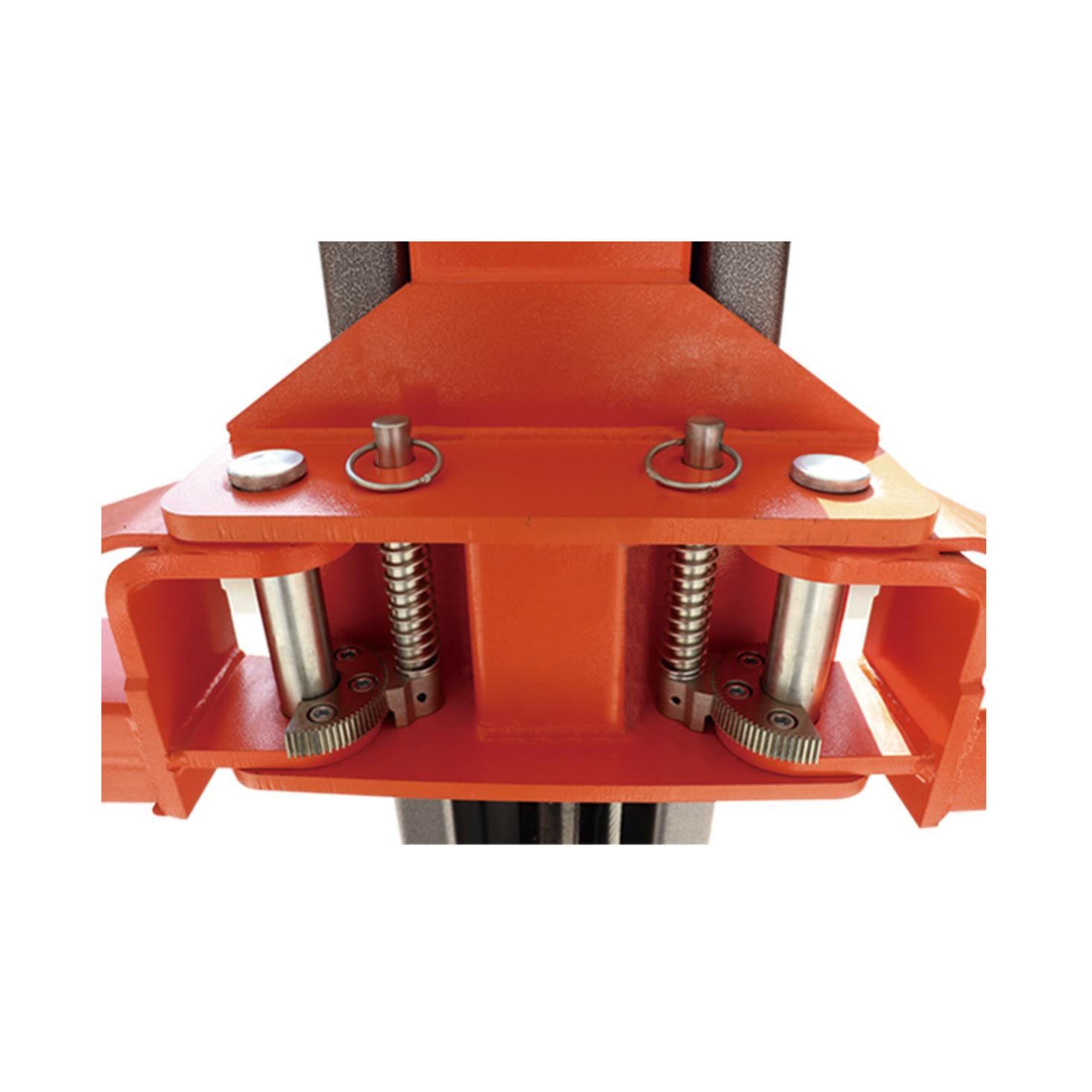

- Automatic arms restraints.
- Professional powder coating.
- CE Certicated.
Introduction to the Garage Car Clear Floor Two Post Lift
Step into the world of seamless garage repairs with the ON-7214E, a top-notch garage car clear floor two post lift designed by Eounice. With a sturdy 4,200kg (9,300lbs) lifting capacity and a 1920mm lifting height, this lift is tailored for professional garages and auto shops looking to enhance their workflow. Its clear floor design, featuring a minimal 95mm height, eliminates obstructions, making it a go-to choice for technicians aiming to optimize space and efficiency. Whether you’re a small garage owner or managing a large service center, this lift brings reliability and power to your daily operations.
Powered by a 2.2KW (3HP) motor with a quick 55-second lifting time, the ON-7214E ensures fast and safe vehicle lifting. Its 3410mm overall width and 2850mm width inside columns accommodate a variety of vehicles, from sedans to SUVs. Discover how this lift can transform your garage experience with Eounice’s cutting-edge engineering.
Creative Repairs with the Garage Car Clear Floor Two Post Lift
The garage car clear floor two post lift shines when it comes to tackling diverse repair tasks in the garage. Use it to hoist a vehicle for undercarriage inspections, allowing easy access to oil pans or exhaust systems with its 1920mm lifting height. Mechanics often rely on it for brake repairs, positioning cars at a comfortable working level without the hassle of baseplate clutter, thanks to its open-floor design.
Another handy application is aligning tires or performing suspension work, where the lift’s stability and 3835mm overall height provide ample room. Its 95mm minimum height also makes it perfect for sliding vehicles into place, streamlining the repair process for busy garages. This versatility makes it an essential tool for any repair-focused workspace.
High-Quality Components Built with Advanced Equipment
The ON-7214E garage car clear floor two post lift is crafted with premium components, ensuring durability and precision. The steel columns are forged using advanced DNE Laser Cutting technology from Sweden, delivering flawless cuts and enhanced structural integrity that withstands daily wear. The hydraulic cylinders, a critical part, are manufactured with high-grade materials and tested for leak-proof performance, guaranteeing smooth lifting operations.
Another standout feature is the overhead cable system, assembled with robotic welding from FANUC, a Japanese leader in automation. This advanced equipment ensures uniform welds, reducing weak points and boosting the lift’s 4,200kg capacity reliability. Visit our factory page to see these cutting-edge processes in action and learn about our commitment to quality.
Compare with Scissor Lifts for Versatile Solutions
While the garage car clear floor two post lift excels in open-space repairs, pairing it with a scissor lift can expand your garage’s capabilities. The ON-7214E’s 3410mm width complements the compact footprint of our scissor lifts, ideal for garages with mixed vehicle types. For instance, use a scissor lift for low-ceiling tasks like tire changes, then switch to the ON-7214E for high-clearance jobs like engine overhauls.
This combination allows seamless transitions between repairs, leveraging the two post lift’s 1920mm height and a scissor lift’s stability for heavier loads. Explore our scissor lift options to find the perfect match, enhancing your garage’s versatility with Eounice’s reliable lifting solutions.
TECHNICAL DATA:
| Model | 7214E |
| Lifting Capacity | 4,200kgs (9,300LBS) |
| Lifting Time | 55S |
| Lifting Height | 1920mm (75 9/16”) |
| Overall Height | 3835mm (151”) |
| Minimum Height | 95mm (3 3 /4”) |
| Overall Width | 3410mm (134 1/4”) |
| Width inside Columns | 2850mm (112 1/4”) |
| Motor Power | 2.2KW (3HP) |
| Shipping Weight | 673kgs (1,484LBS) |
Explore More with Automotive Insights
To keep your garage ahead of the curve, consider checking out latest new on Auto Express. This resource offers valuable tips on maintaining your equipment and staying updated with industry innovations, complementing the ON-7214E’s advanced design. Whether it’s new repair techniques or tool upgrades, these insights can elevate your garage’s performance.

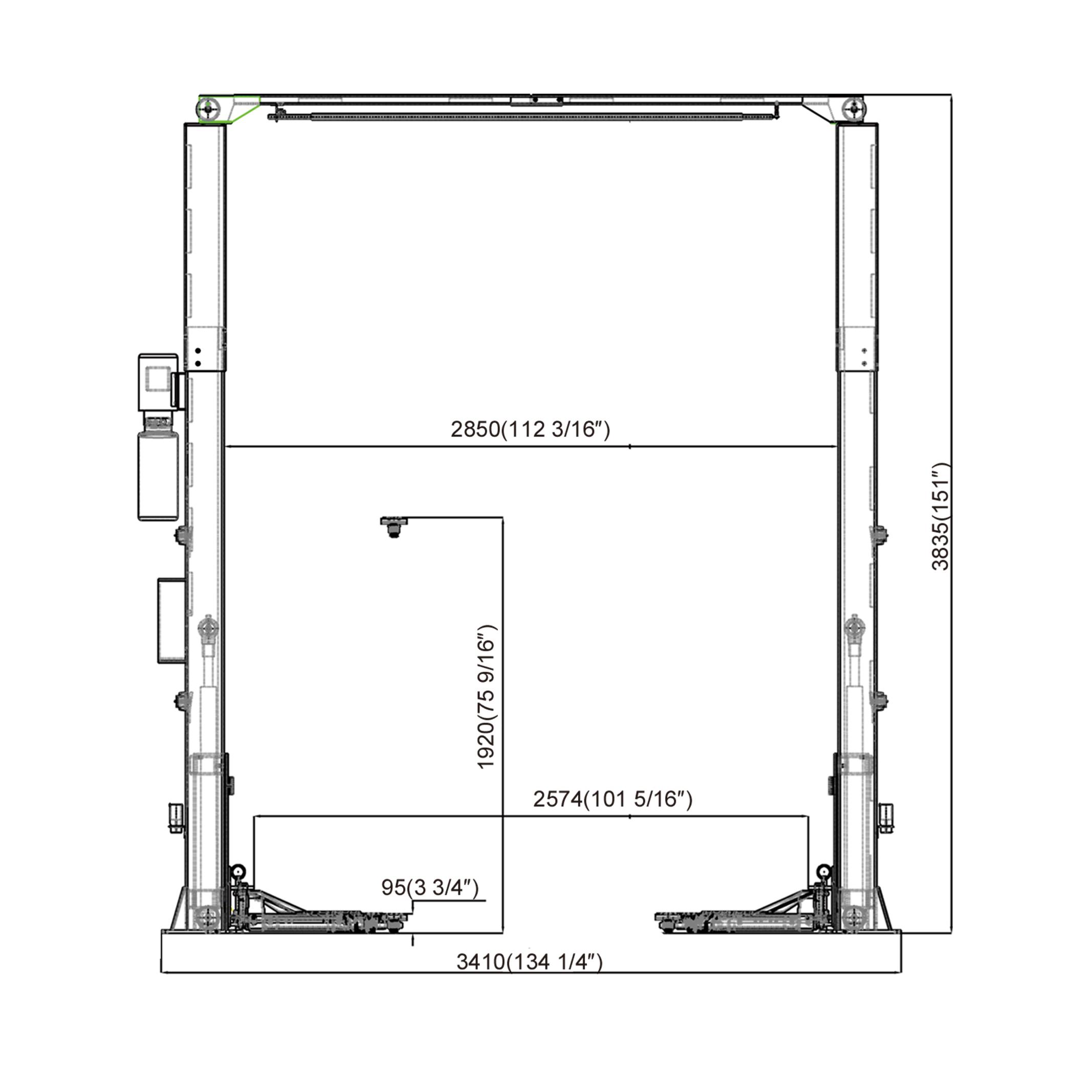

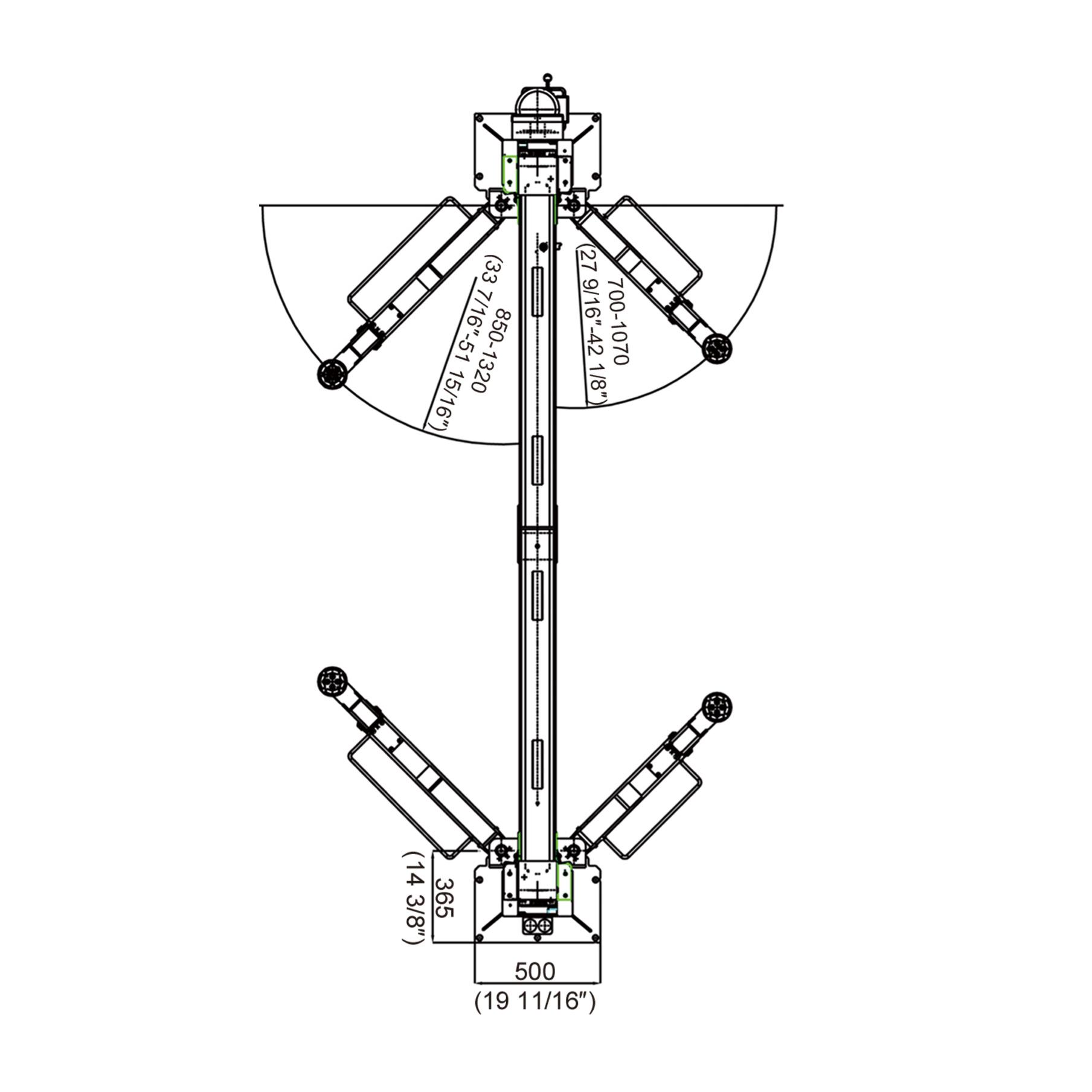

OVERAL DIMENSION:
DETAILS:
Custom Options
- OEM service can be offered
- Lift color can be offered as customer request.

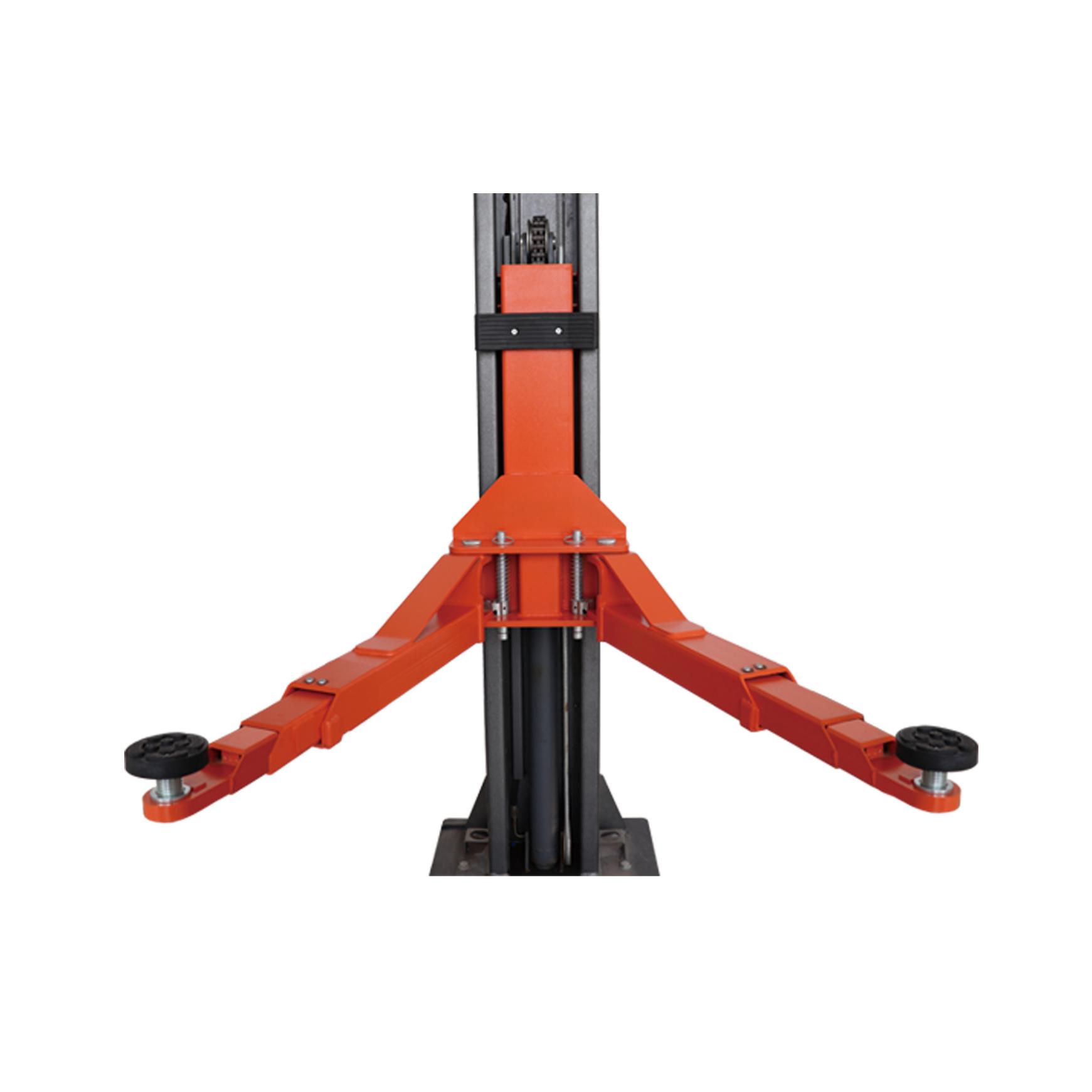

- Optional three-stages lifting arms.

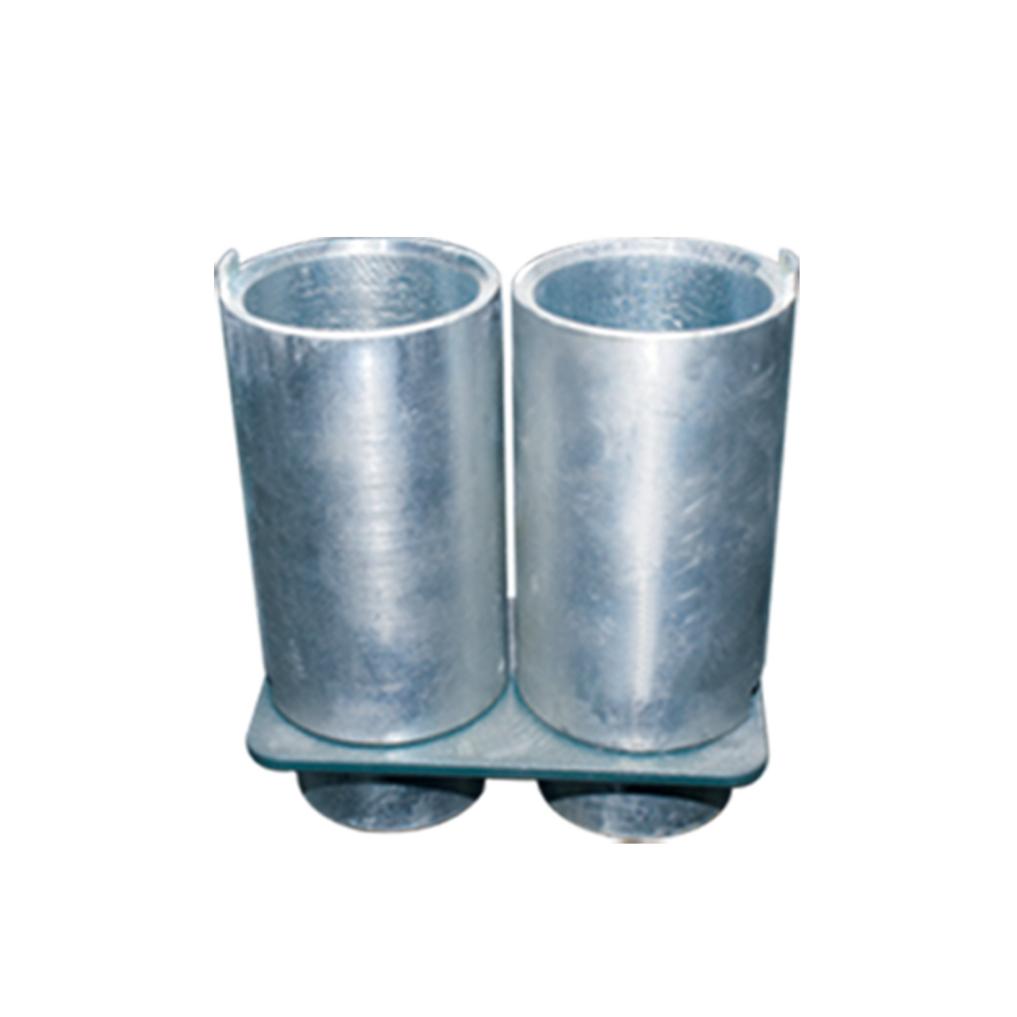

- Optional 70mm(2 3/4”) and 100mm(3 15/16”) extension adapters.
Features and Benefits
- The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4”), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
- The maximum height is 3835mm(151”), and the effective height is 3700mm(145 11/16”), which is more suitable for the lifting of vehicles with high roof.
- The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8”) from the shaft end, which can effectively prevent the pulley from coming out.
- The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
- Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
Get Instant Quote in 24 Hours
Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:
35,000m² Vehicle lift production workshop.
Skillful technical research more than 5 years.
ISO 9001 quality management system certificated and CE approved by European Union.
Over 50 automatic production line equipments.
