ON-7804B   4.0T   ALIGNMENT SCISSOR LIFT

Low profile double alignment scissor lift with wheels-free system.

  • CE approval.
  • 4,000Kg (9,000LBS.) lifting capacity.
  • Low profile design for all quick inspections, body diagnostics, tire and body repairs.

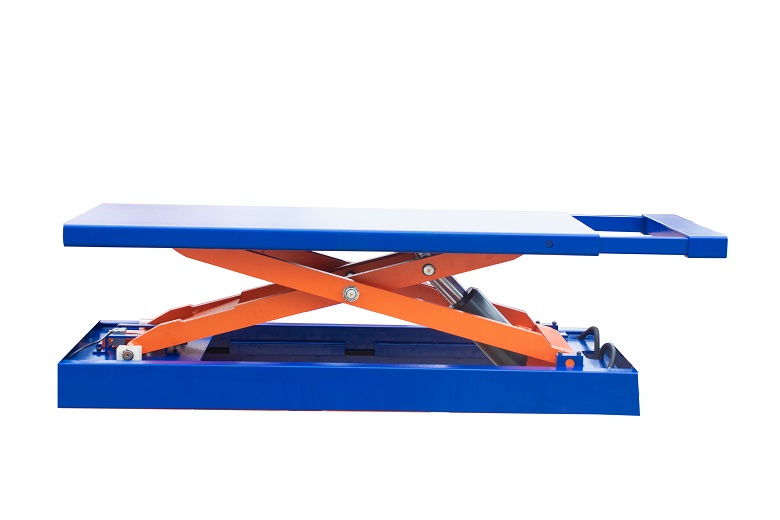

  • Secondary lifting platform for easy maintenance of tires, and the platform can be extended for vehicles with different wheelbases.

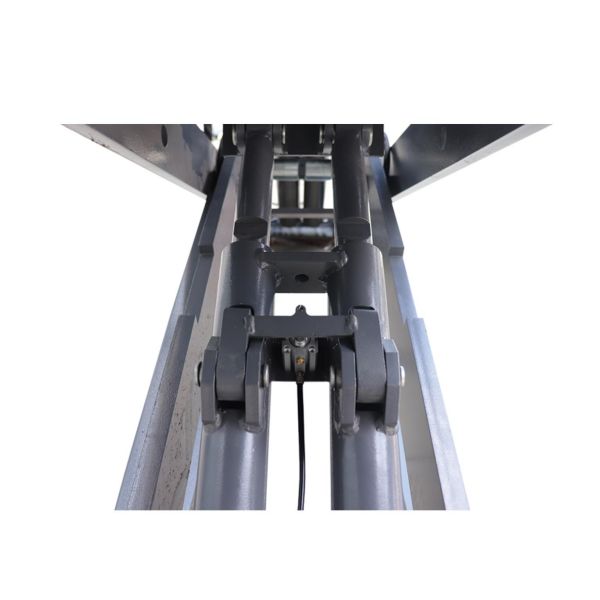

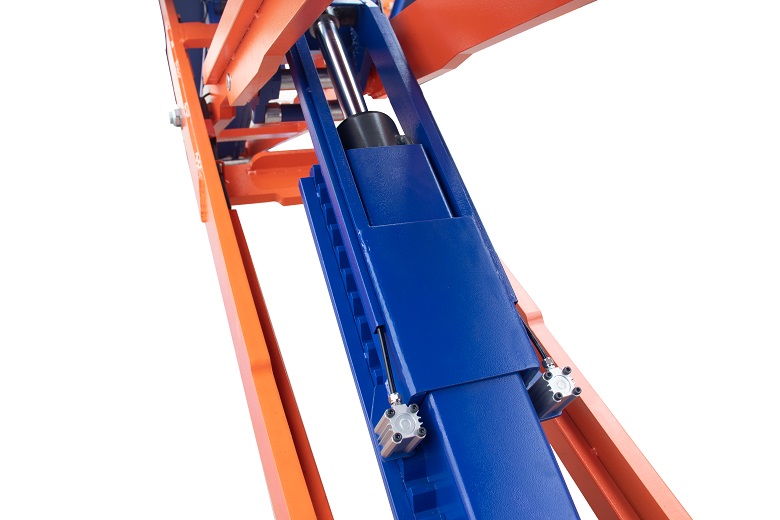

  • Mechanical lock device to ensure the safety of the lift operation.
  • Pneumatic safety lock release system.
  • 24volt electrical control system.
  • Alarm buzzer during full-range of lift descent.
  • Self-lubricated bushing and bearing.
  • Hydraulic valve plate with manual unloading knob. In the event of a power outage, the vehicle being repaired on the lift can also be safety and smoothly lowered.

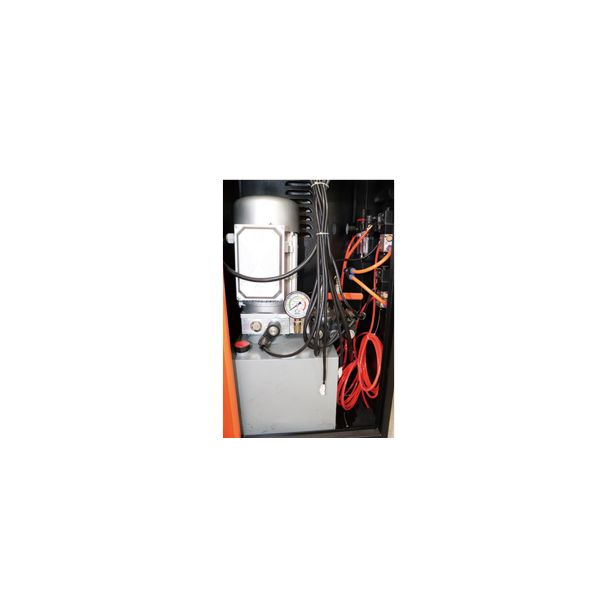

  • Standard with aluminum motor power unit.

TECHNICAL DATA:

Model                   7804B
Lifting Capacity 4,000kgs (9,000LBS)
Lifting Time ≤50S
Lifting Height 1800mm (70 7/8”)
Minimum Height 195mm   (7 11 /16”)
Runway Length 4500mm (177 3/16”)
Overall Length (Inc.Ramps) 5480mm (215 3/4”)
Runway Width 620mm (24 7/16”)
Shipping Weight 2,030kgs (4,475LBS)
Motor Power 2.2KW (3HP)

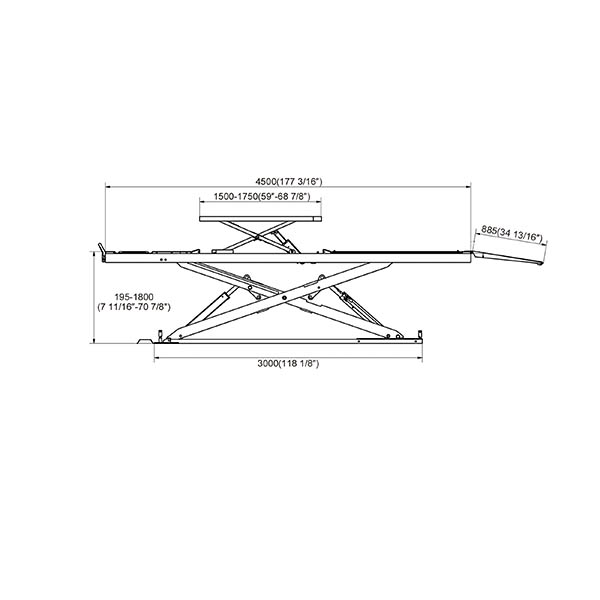

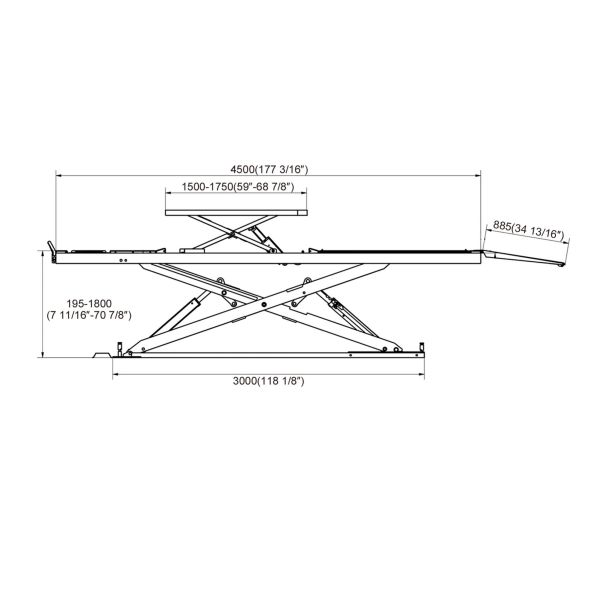

OVERALL DEMENSION:

7804B-Alignment-Scissor-Lifts7804B-Alignment-Scissor-Lifts

Application Video

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.

Features and Benefits

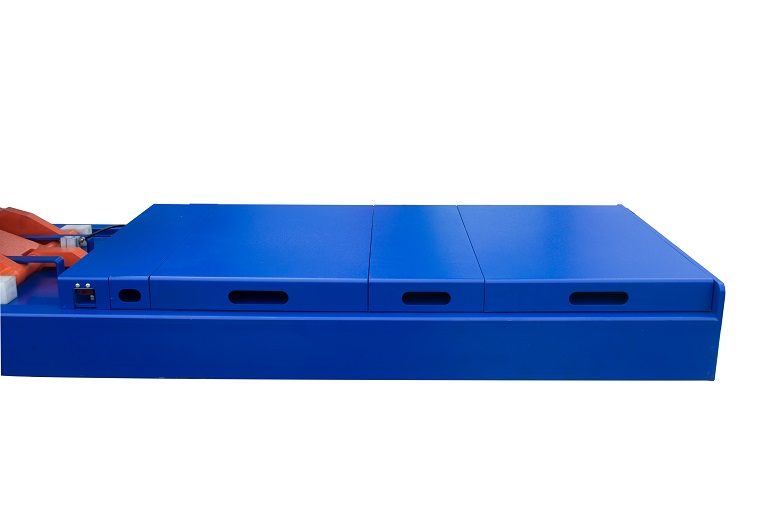

  • Low profile design, min height is only 195mm (7 11/16”), suitable for low-chassis vehicles.

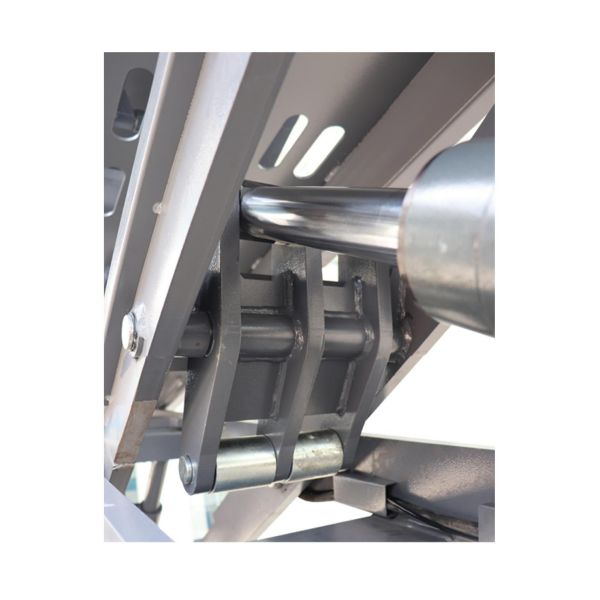

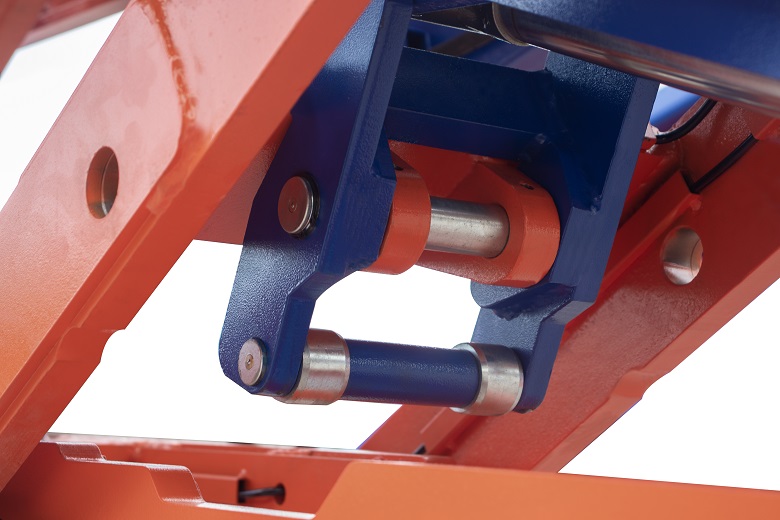

  • The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.

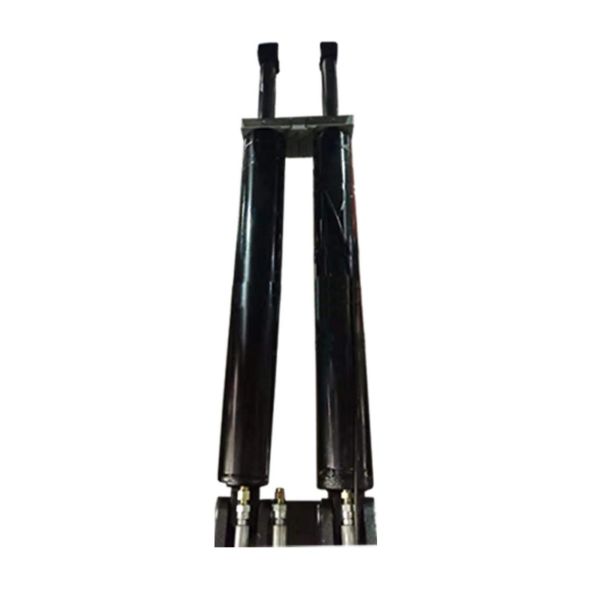

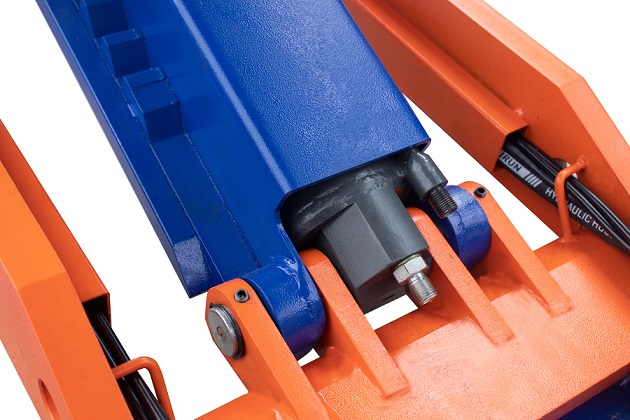

  • Large diameter 2-Dual synchronous cylinder (master cylinder 80mm), easier to start, can effectively increase the service life of the hydraulic part; The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
