ON-7805    5.0T    ALIGNMENT SCISSOR LIFT

Pneumatic lock release, flush mount in-ground double alignment scissor lift.

  • 5,000Kg (11,000LBS.) lifting capacity.
  • Suitable for four-wheel alignment, repair and maintenance.

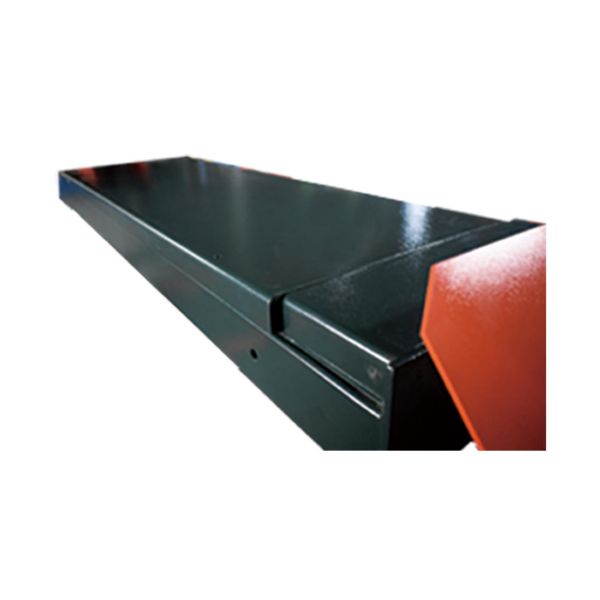

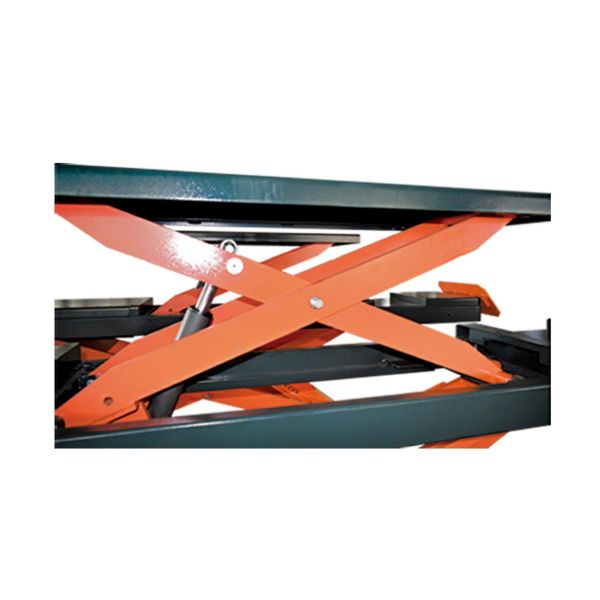

  • Secondary lifting platform for easy maintenance of tires, and the platform can be extended for vehicles with different wheelbases.

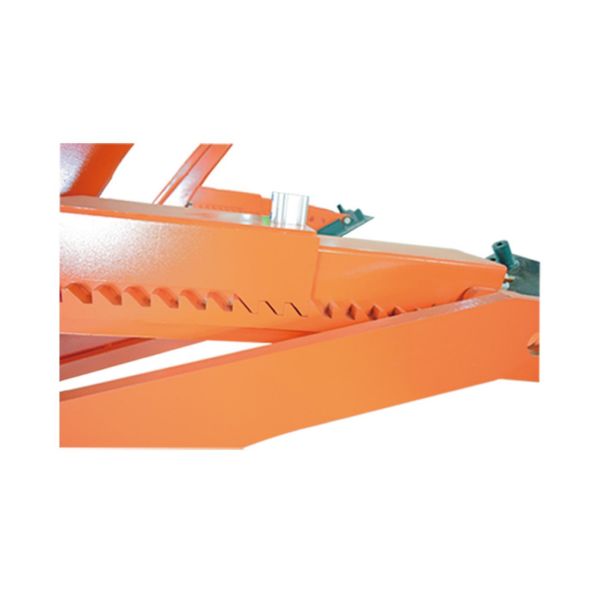

  • Mechanical lock device to ensure the safety of the lift operation.

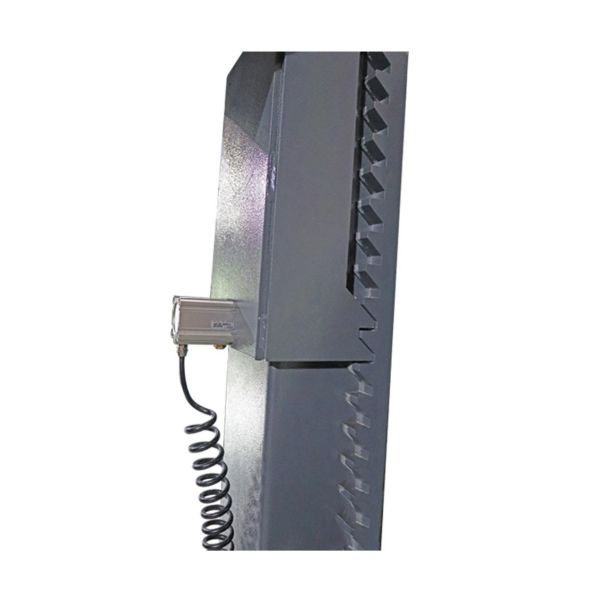

  • Pneumatic safety lock release system.

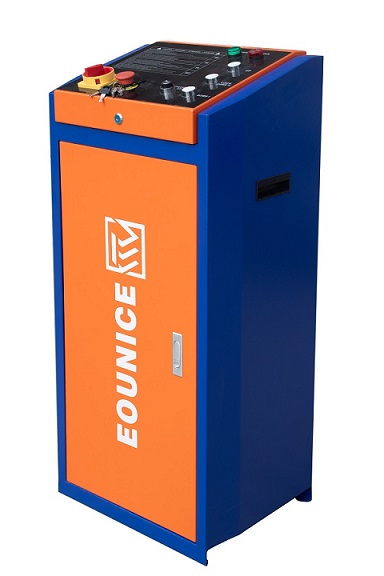

  • 24volt electrical control system.
  • Alarm buzzer during full-range of lift descent.
  • Self-lubricated bushing and bearing.
  • Hydraulic valve plate with manual unloading knob. In the event of a power outage, the vehicle being repaired on the lift can also be safety and smoothly lowered.

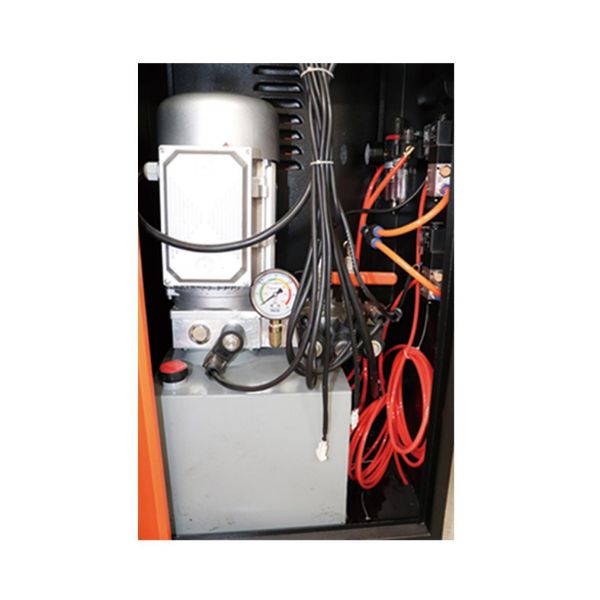

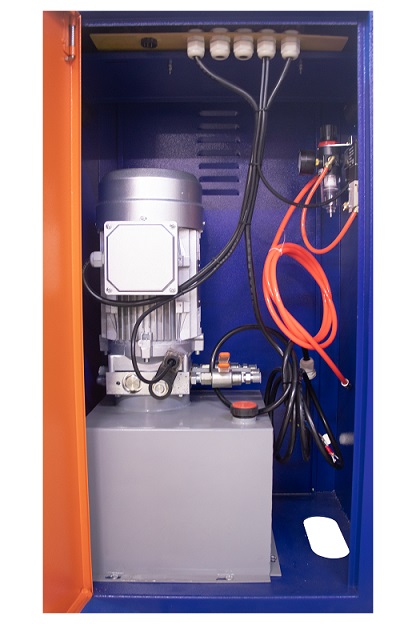

  • Standard with aluminum motor power unit.
  • CE approval.

TECHNICAL DATA:

Model                    7805
Lifting Capacity 5,000kgs (11,000LBS)
Lifting Time 50S
Lifting Height 1850mm (72 7/8”)
Minimum Height 350mm   (13 3 /4”)
Runway Length 5000mm (177 3/16”)
Runway Width 605mm (23 13/16”)
Shipping Weight 2,200kgs (4,850LBS)
Motor Power 2.2KW (3HP)

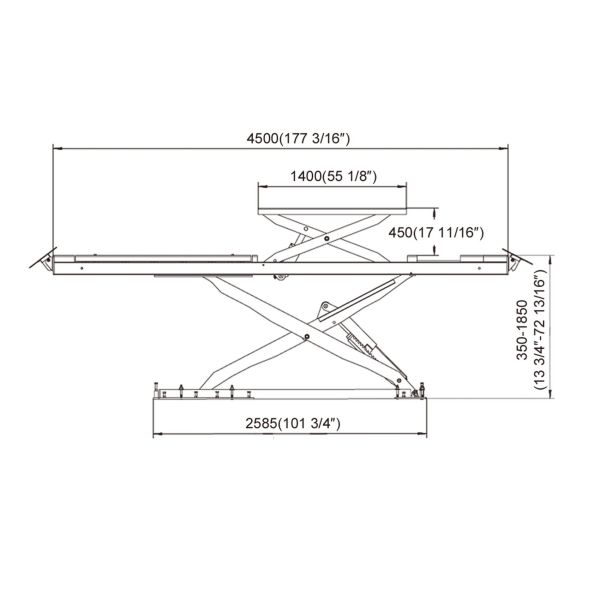

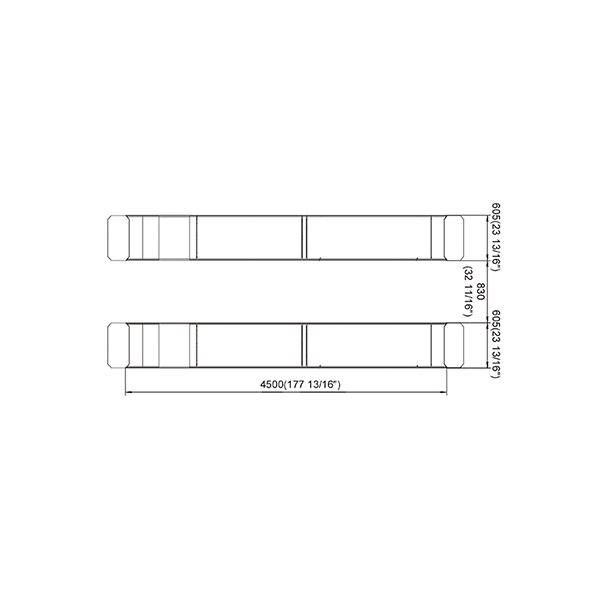

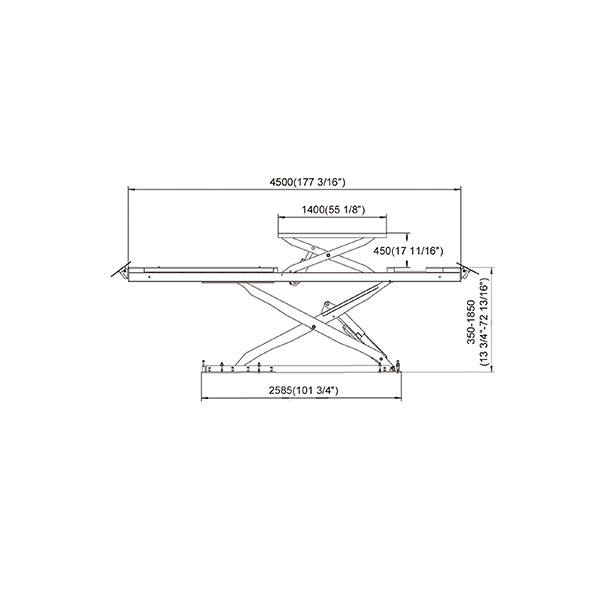

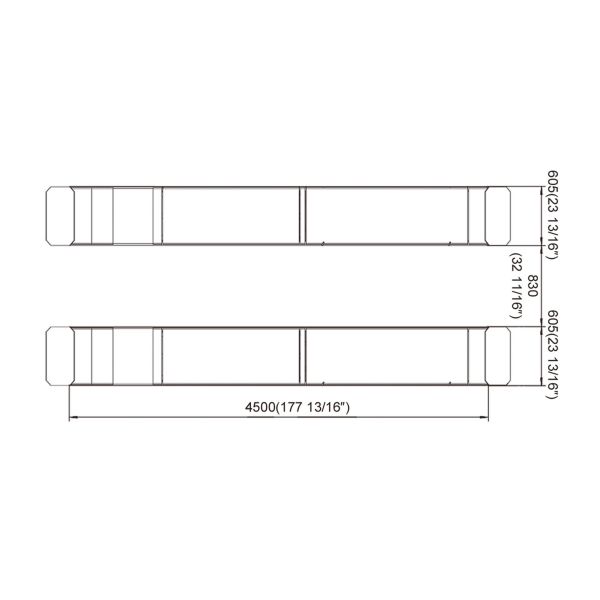

OVERALL DEMENSION:

7805-Alignment-Scissor-Lifts7805-Alignment-Scissor-Lifts



Application Video

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.

Features and Benefits

  • In-ground type installation, the runway is parallel to the ground, beautiful and does not occupy space.
  • The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
  • Large diameter Dual synchronous cylinder, easier to start, can effectively increase the service life of the hydraulic part; The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

Get Instant Quote in 24 Hours

Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:

35,000m² Vehicle lift production workshop.

Skillful technical research more than 5 years.

ISO 9001 quality management system certificated and CE approved by European Union.

Over 50 automatic production line equipments.

Professional Vehicle Lift Solutions.
