ON-7805G 4.0T ALIGNMENT SCISSOR LIFT

Pneumatic lock release, flush mount in-ground double alignment scissor lift.

4,000Kg (9,000LBS.) lifting capacity.
Suitable for four-wheel alignment, repair and maintenance.

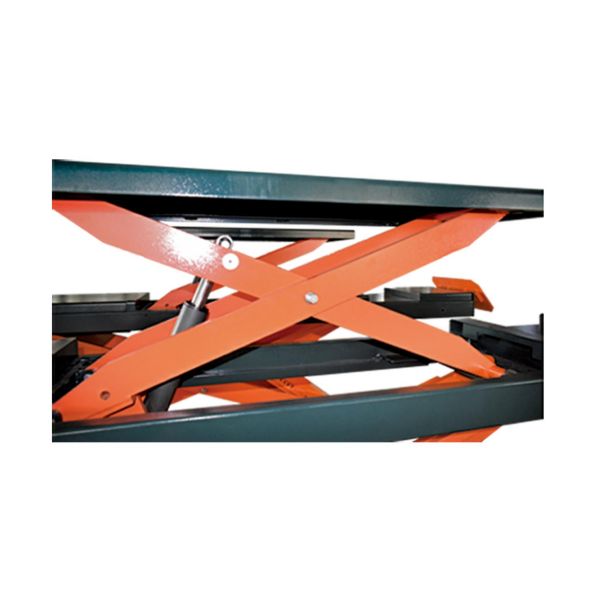

Secondary lifting platform for easy maintenance of tires, and the platform can be extended for vehicles with different wheelbases.

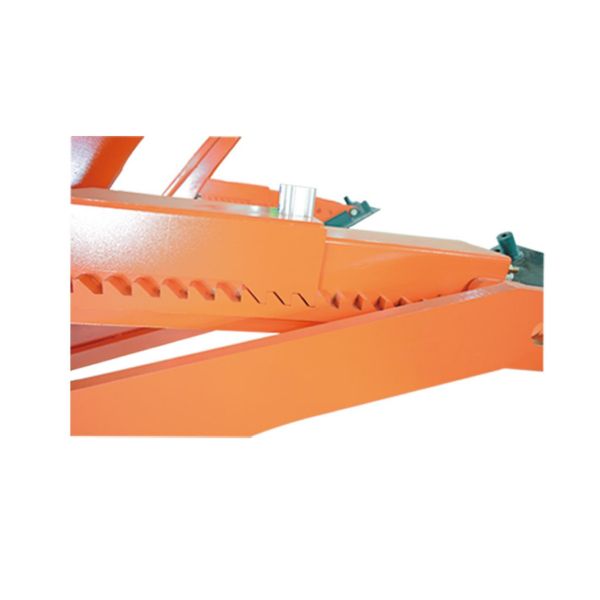

Mechanical lock device to ensure the safety of the lift operation.

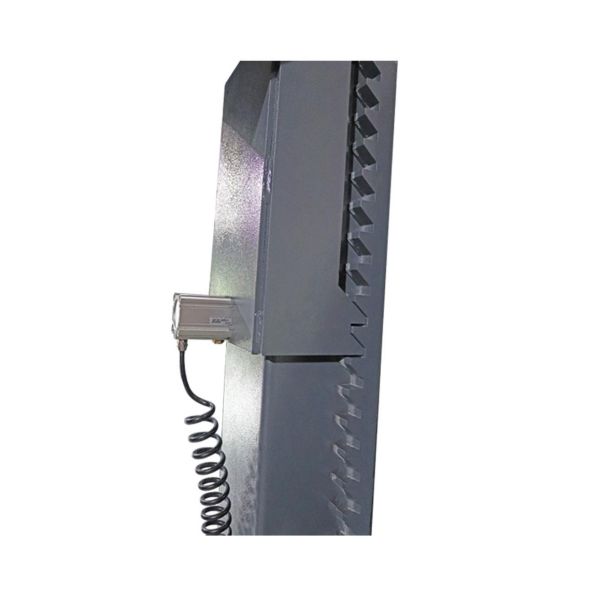

Pneumatic safety lock release system.
24volt electrical control system.
Alarm buzzer during full-range of lift descent.
Self-lubricated bushing and bearing.
Hydraulic valve plate with manual unloading knob. In the event of a power outage, the vehicle being repaired on the lift can also be safety and smoothly lowered.

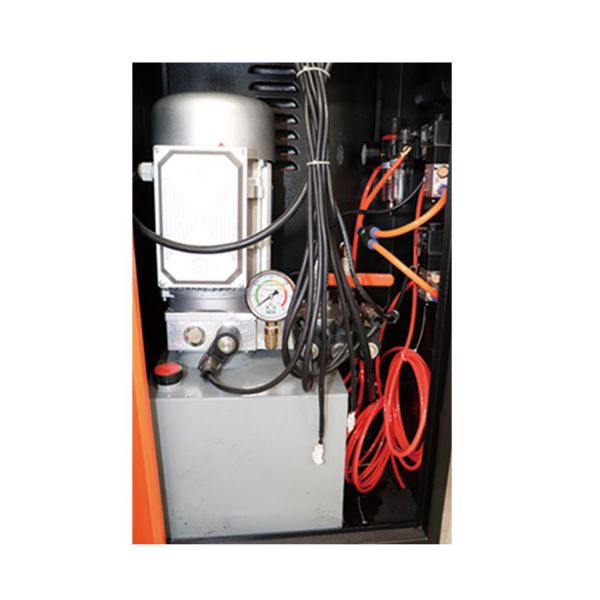

Standard with aluminum motor power unit.
CE approval.

Request A Quote

TECHNICAL DATA:

Model	7805G
Lifting Capacity	4,000kgs (9,000LBS)
Lifting Time	50S
Lifting Height	1850mm (72 7/8”)
Minimum Height	350mm (13 3 /4”)
Runway Length	4500mm (177 3/16”)
Runway Width	605mm (23 13/16”)
Shipping Weight	1,738kgs (3,832LBS)
Motor Power	2.2KW (3HP)

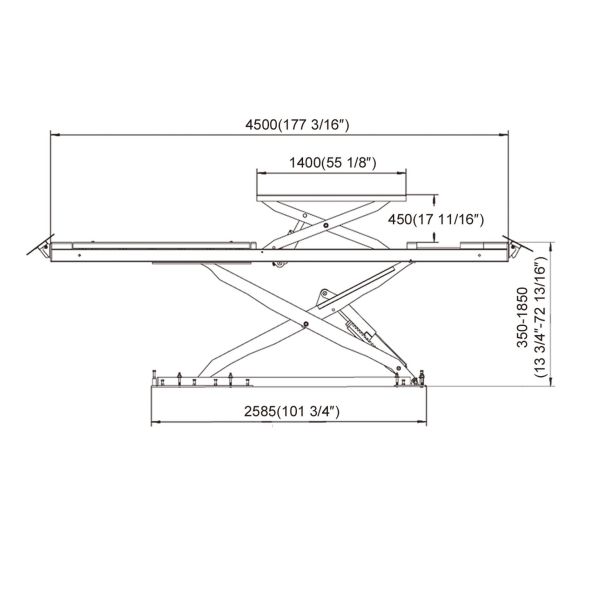

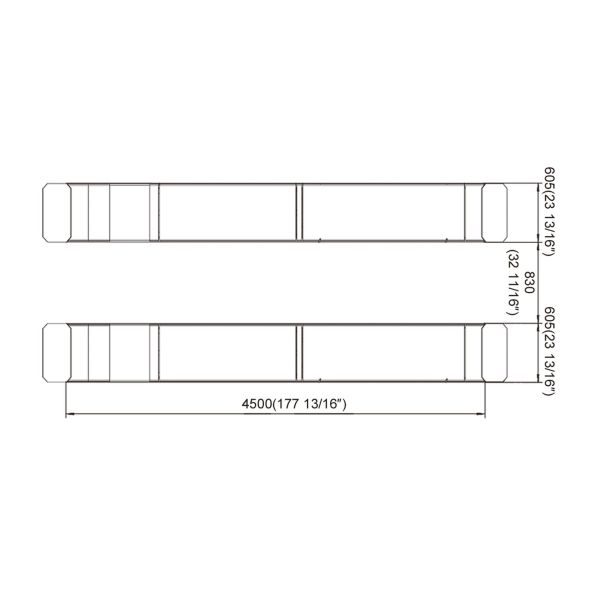

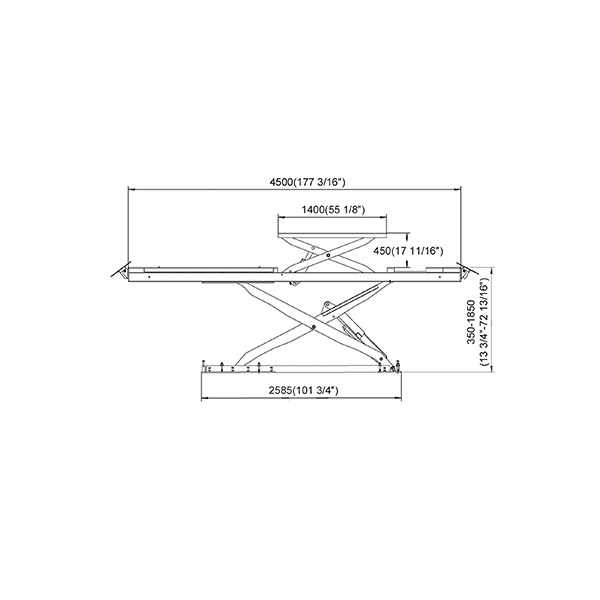

OVERALL DEMESNION:

7805G-Alignment-Scissor-Lifts

Custom Options

OEM/ODM service can be offered

Lift color can be offered as customer request.

Features and Benefits

In-ground type installation, the runway is parallel to the ground, beautiful and does not occupy space.
The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
Large diameter Dual synchronous cylinder, easier to start, can effectively increase the service life of the hydraulic part; The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.

The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
