ON-7802LE

Electric safety lock release, mid-rise scissor lift.

  • 3,500Kg (8,000LBS.) lifting capacity.
  • Portable design and the lift can be moved easily.
  • Durable cylinders with anti-surge valves.

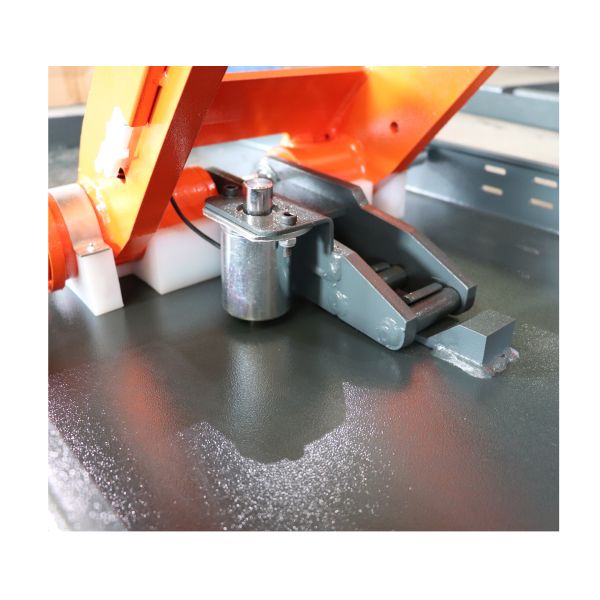

  • Electric safety lock release system.

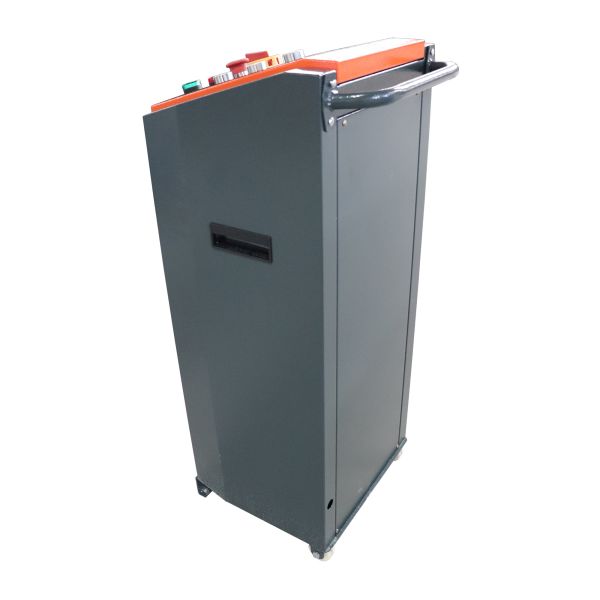

  • 24V low voltage electrical control system with control cabinet.
  • Self-lubricated bushing and bearing.
  • Standard with height limit switch.

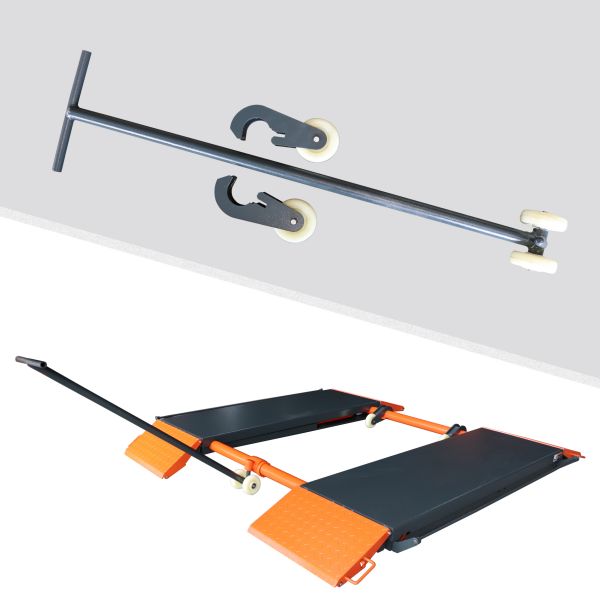

  • Standard with mobile kit makes the lift move in the garage easily.
  • Standard with aluminum motor power unit.
  • Standard with power arm to start the lift easier.
  • CE approval.

TECHNICAL DATA:

Model                    7802LE                       7802LT
Lifting Capacity 3,500kgs 4,000kgs
Lifting Height 1000mm 1000mm
Minimum Height 110mm 120mm
Lifting Time 30S 40S
Overall Length (Inc.Ramps) 2015mm 2015mm
Platform Length 1420mm 1420mm
Platform Width 520mm 520mm
Motor Power 2.2KW (3HP) 2.2KW (3HP)
Shipping Weight 591kgs 648kgs
Packing  size 1905*1590*230mm 1905*1590*230mm

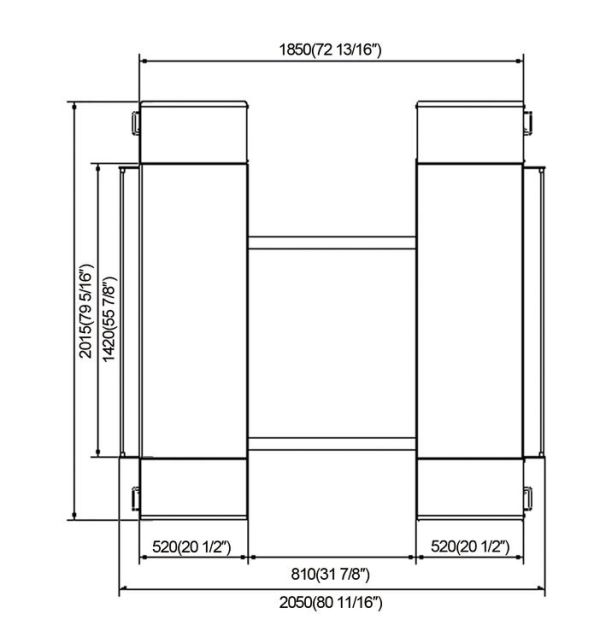

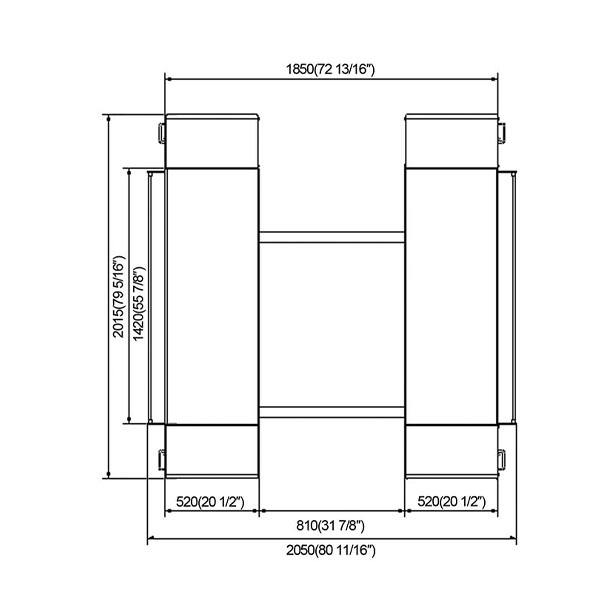

OVERALL DEMENSION:

7802LE-Mid-Rise-Scissor-Lifts

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.

Features and Benefits

  • Portable design and the lift can be moved easily.
  • The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.

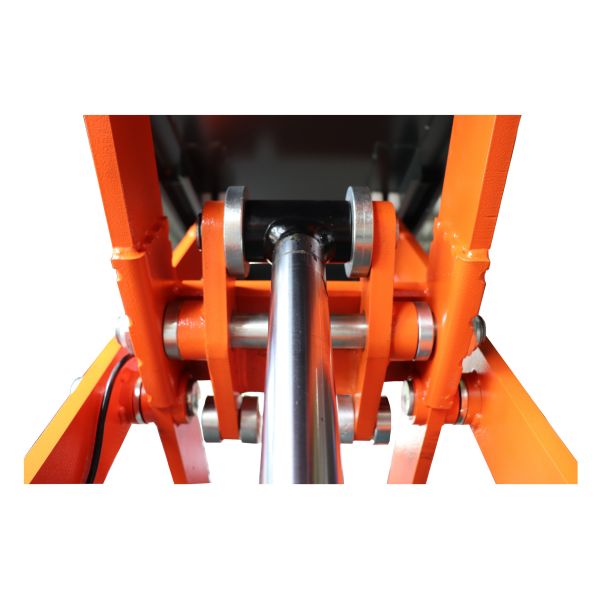

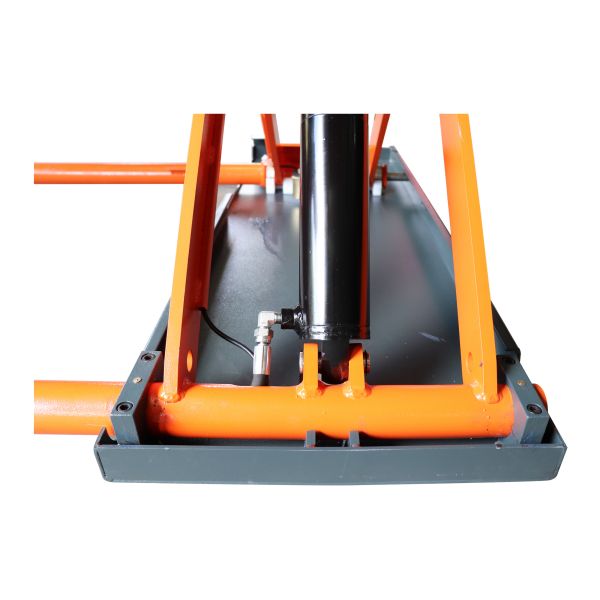

  • The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
