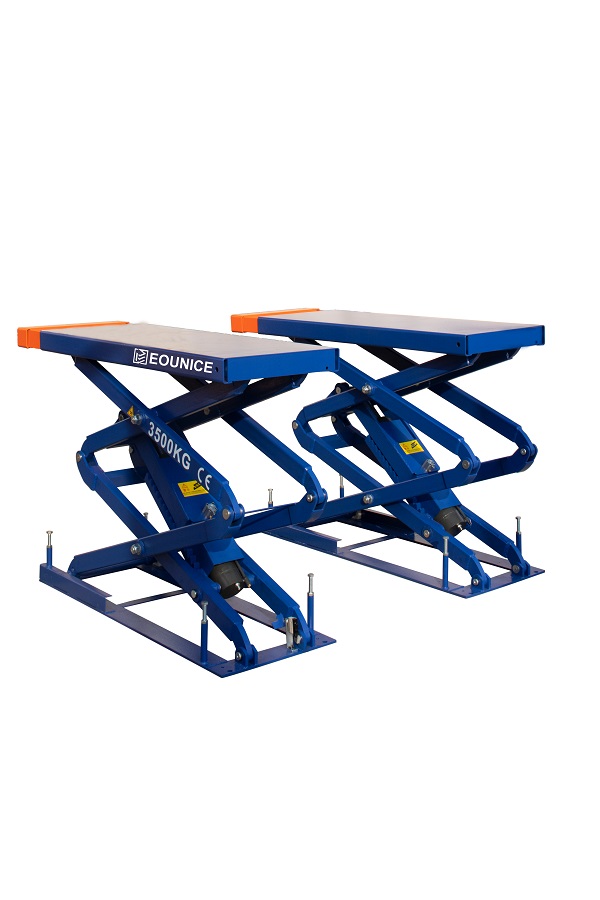

Flush mount full rise scissor lift 7803-30

ON-7803-35

Electric safety lock release, full-rise scissor lift.

3,500Kg (7716LBS.) lifting capacity.
Portable design and the lift can be moved easily.

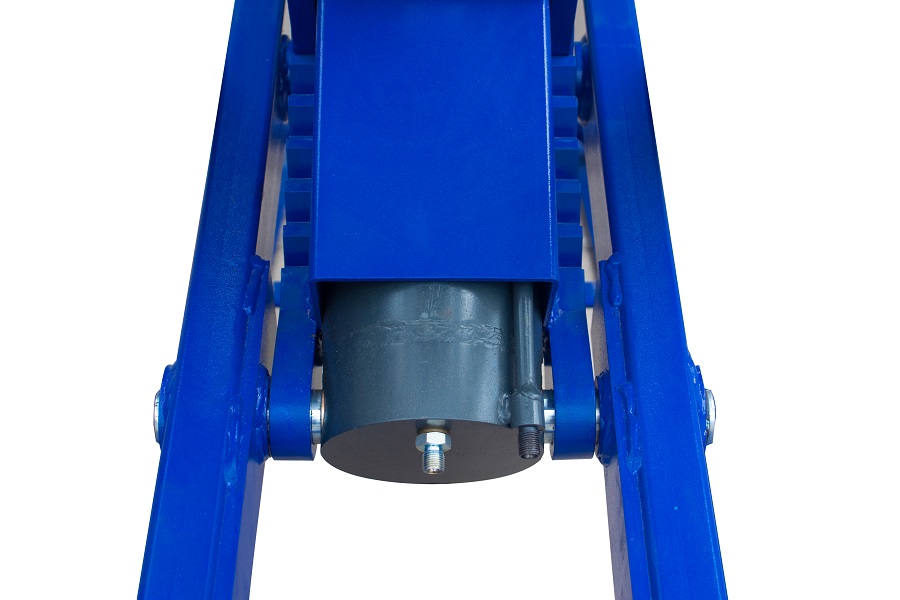

Durable cylinders with explosion proof valve.

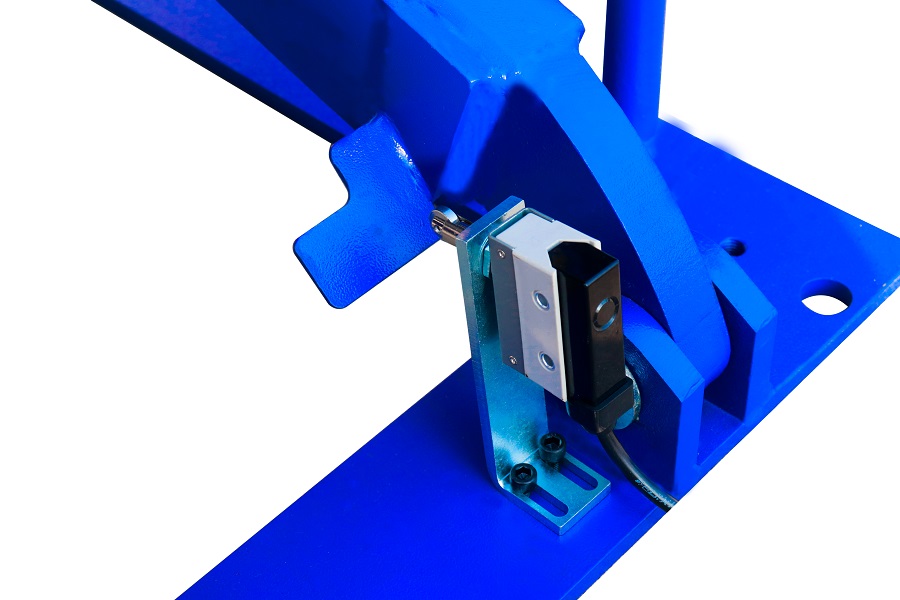

Electric safety lock release system.

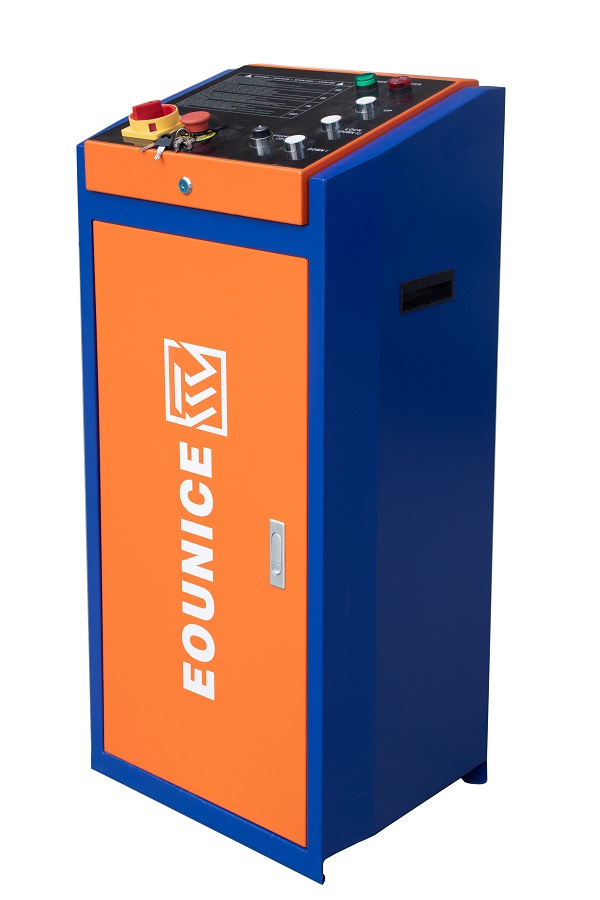

24V low voltage electrical control system with control cabinet.
Self-lubricated bushing and bearing.

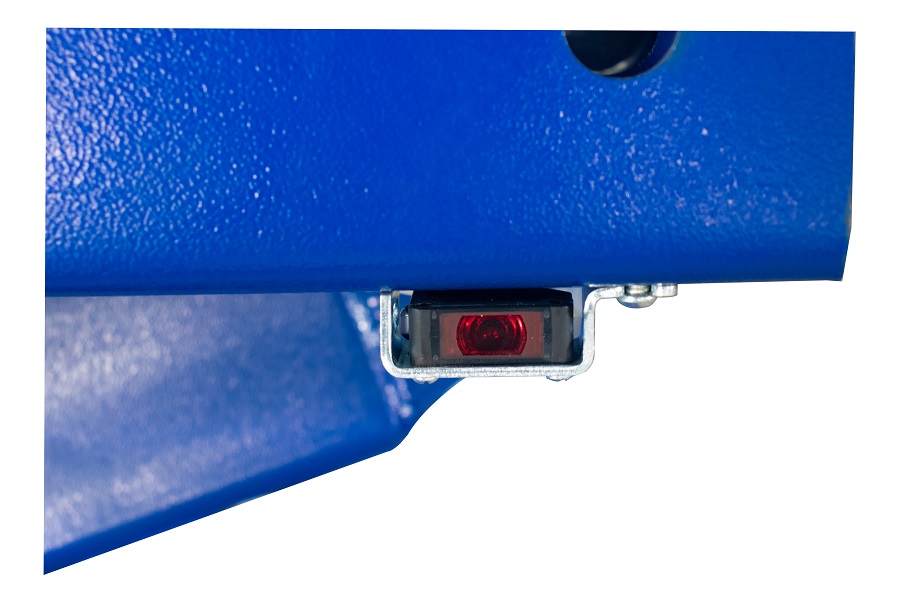

Standard with height limit switch.

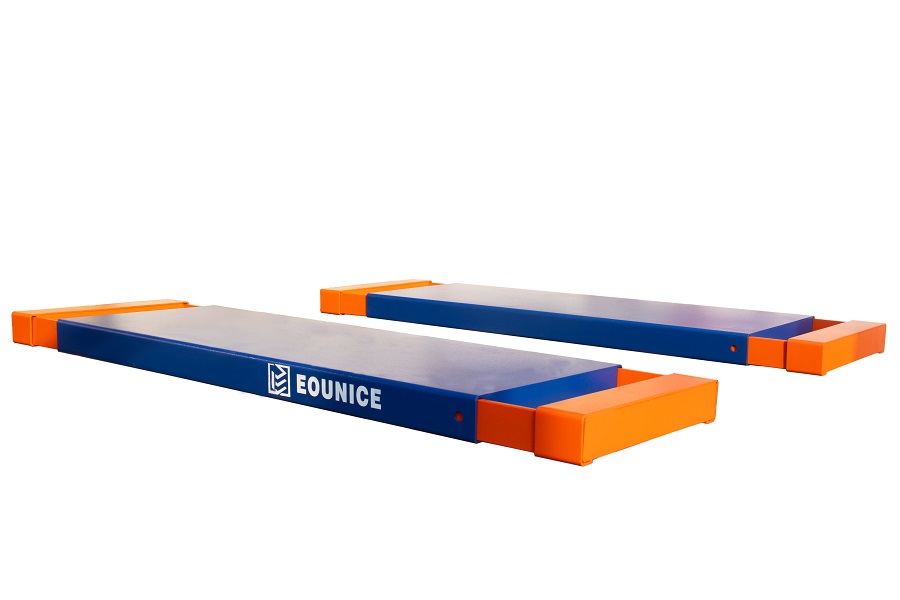

Double telescopic platform with extendable platform.

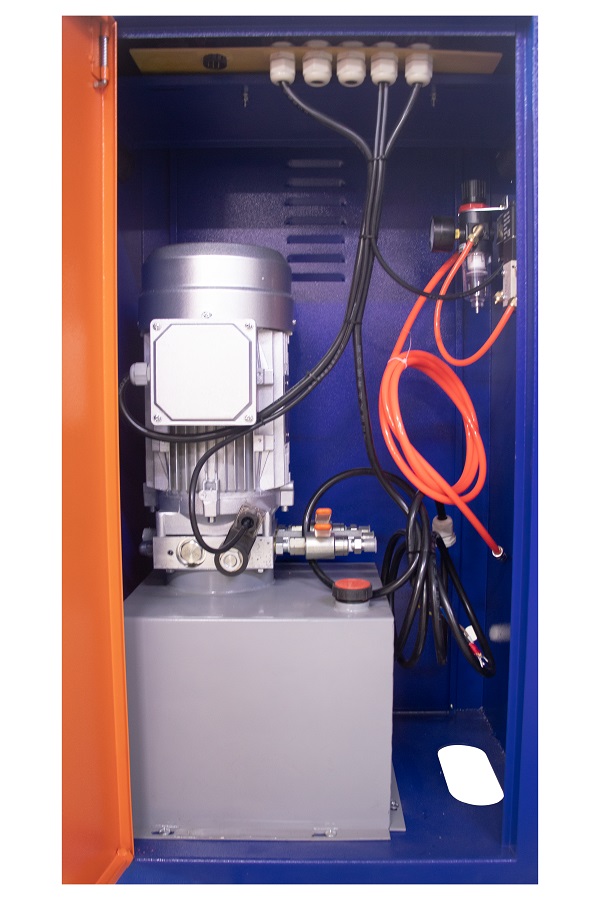

Standard with aluminum motor power unit.
Standard with power arm to start the lift easier.
CE approval.

Request A Quote

TECHNICAL DATA:

Model	7803-35
Lifting Capacity	3,500kgs
Lifting Height	2160mm
Minimum Height	110mm
Lifting Time	30S
Overall Length (Inc.Ramps)	2015mm
Platform Length	1420mm
Platform Width	520mm
Motor Power	2.2KW (3HP)
Shipping Weight	591kgs
Packing size	19051590230mm

OVERALL DEMENSION:

Custom Options

OEM/ODM service can be offered

Lift color can be offered as customer request.

Features and Benefits

Portable design and the lift can be moved easily.

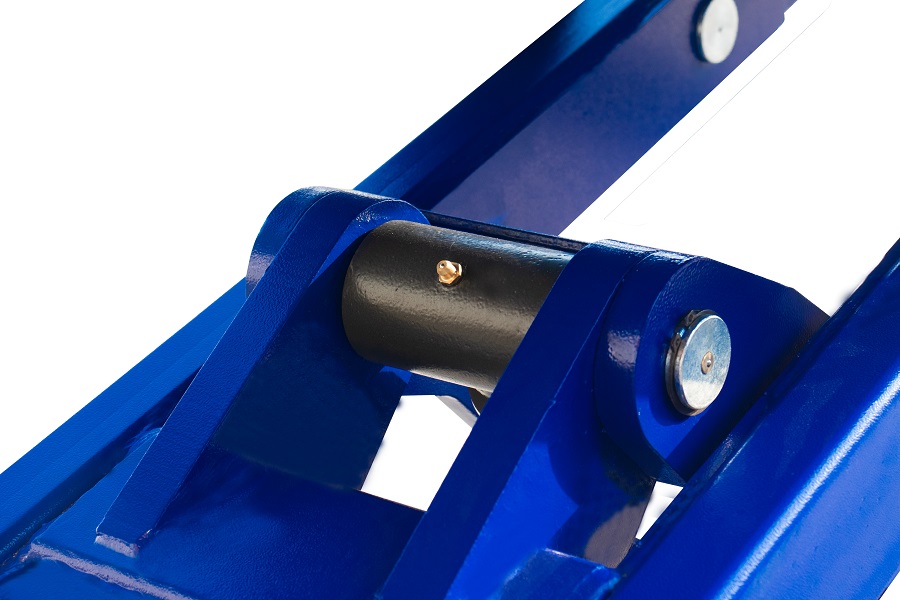

The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.

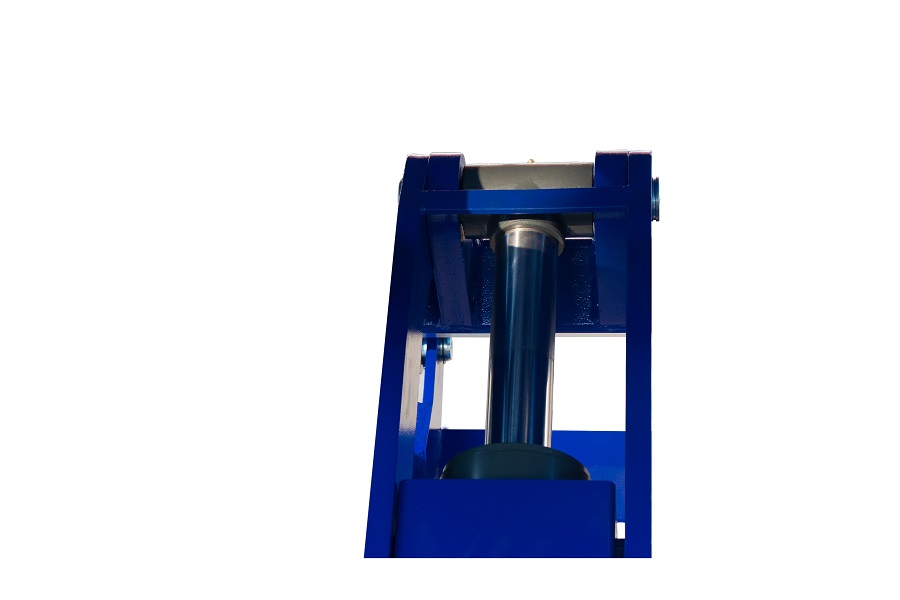

The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.

The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
