ON-7224E/4.5

Electrical release and dual chain drive cylinders.

4,500Kg (10,000LBS.) lifting capacity.

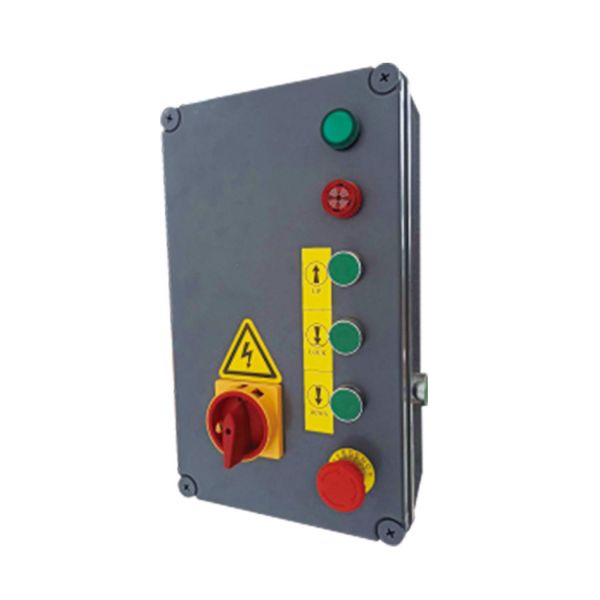

Electrical lock release with 24V low voltage operation.
Durable chain drive cylinder in each column carries with anti-surge valves.

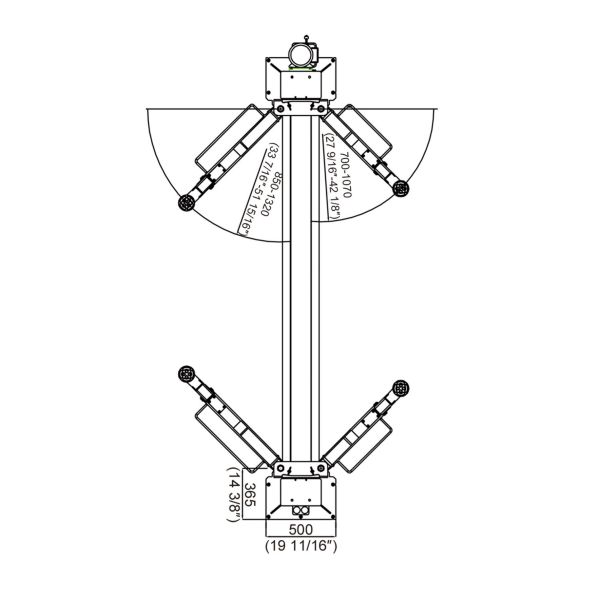

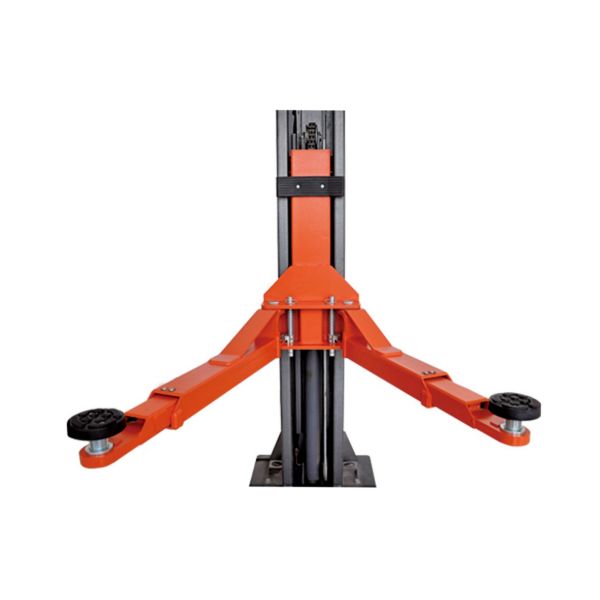

Standard with 4 two-stage lifting arms.

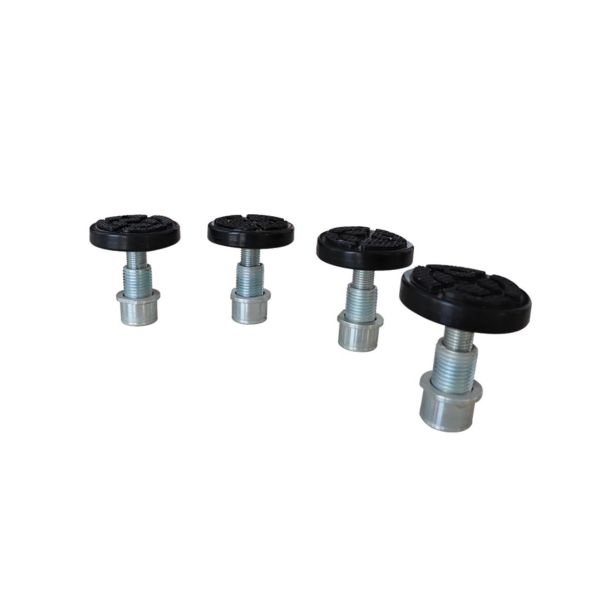

Screw-up rubber pads with min height 95mm (3 3/4”).
1920mm (75 9/16”) lifting height suitable for various operators.

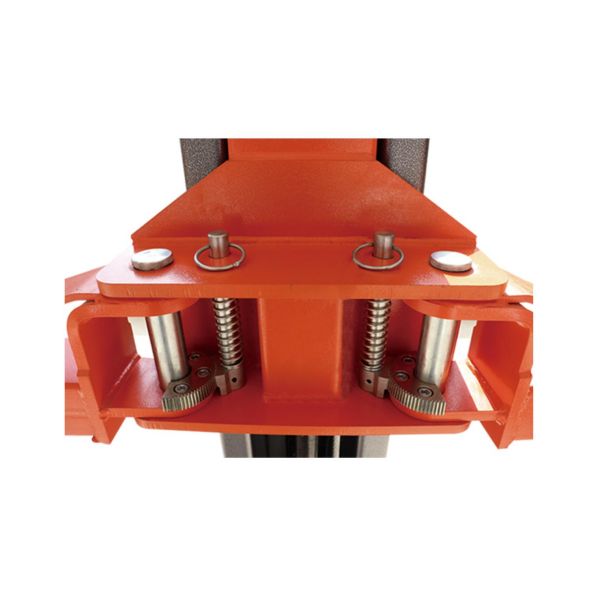

Automatic arms restraints.
Professional powder coating.

Request A Quote

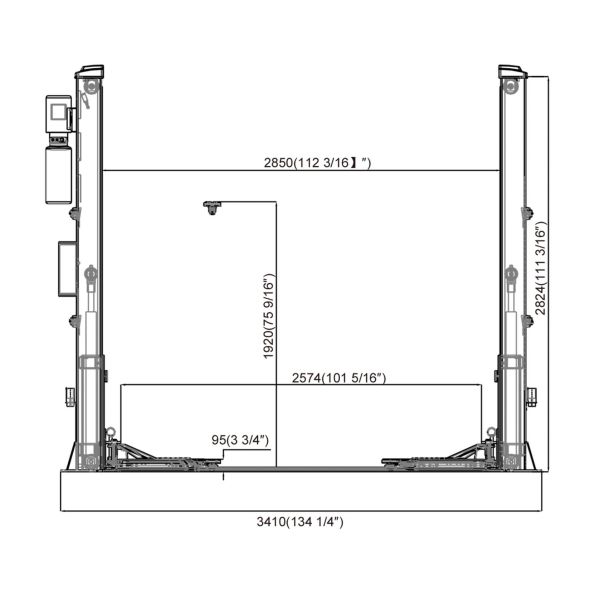

TECHNICAL DATA

Model	7224E
Lifting Capacity	4,200kgs (9,300LBS)	4,500kgs (10,000LBS)
Lifting Time	≤55S	≤55S
Lifting Height	1920mm (75 9/16”)	1920mm (75 9/16”)
Minimum Height	95mm (3 3 /4”)	95mm (3 3 /4”)
Overall Height	2824mm (111 3/16”)	2824mm (111 3/16”)
Width inside Columns	2850mm (112 1/4”)	2850mm (112 1/4”)
Overall Width	3410mm (134 1/4”)	3410mm (134 1/4”)
Shipping Weight	628kgs (1,385LBS)	658kgs (1,451LBS)
Motor Power	2.2KW (3HP)	2.2KW (3HP)

Custom Options

OEM/ODM service can be offered

Lift color can be offered as customer request.

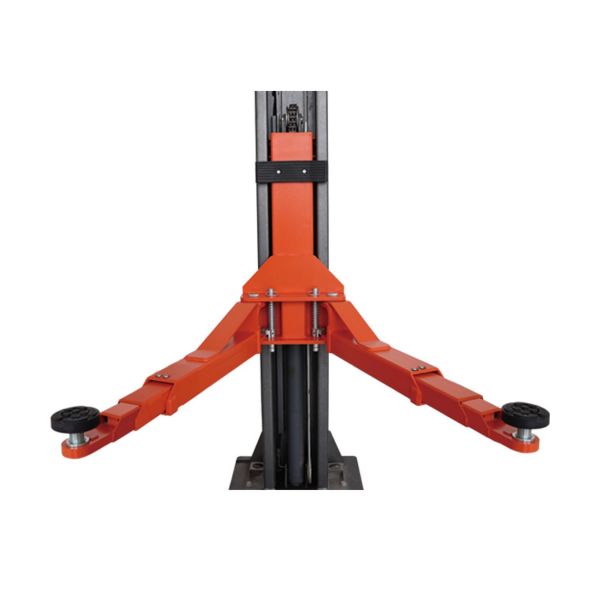

Optional three-stages lifting arms.

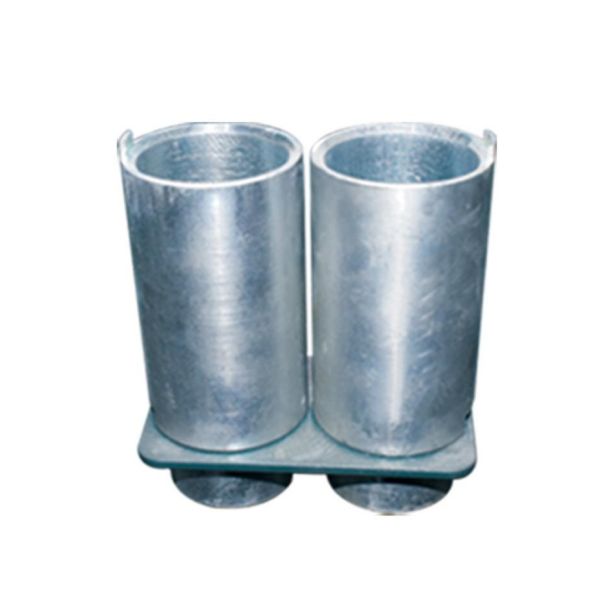

Optional 70mm(2 3/4”) and 100mm(3 15/16”) extension adapters.

Features and Benefits

The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4”), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
The cover plate is ultra-thin design, the height from the ground is only 33mm(1 5/16”), the vehicle is easier to pass;
The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8”) from the shaft end, which can effectively prevent the pulley from coming out.

The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
