ON-7802L

Pneumatic safety lock release, portable mid-rise scissor lift.

  • CE approval by TUV.
  • 3,500Kg (8,000LBS.) lifting capacity.
  • Portable design and the lift can be moved easily.
  • Durable cylinders with anti-surge valves.

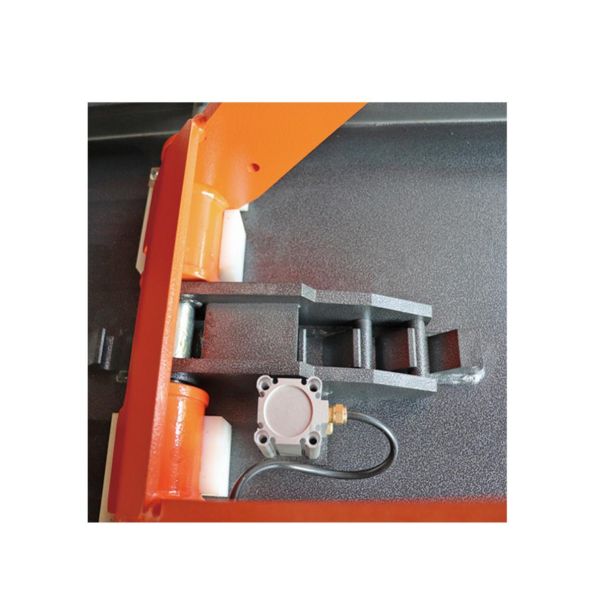

  • Pneumatic safety lock release system.
  • 24V low voltage electrical control system.
  • Self-lubricated bushing and bearing.

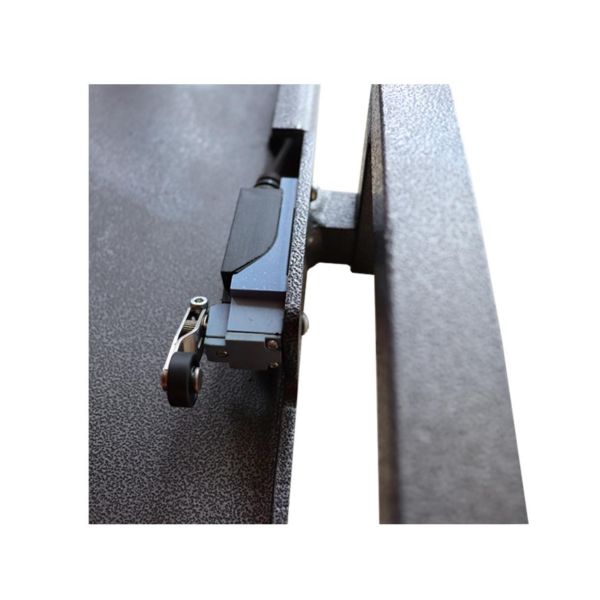

  • Standard with height limit switch.

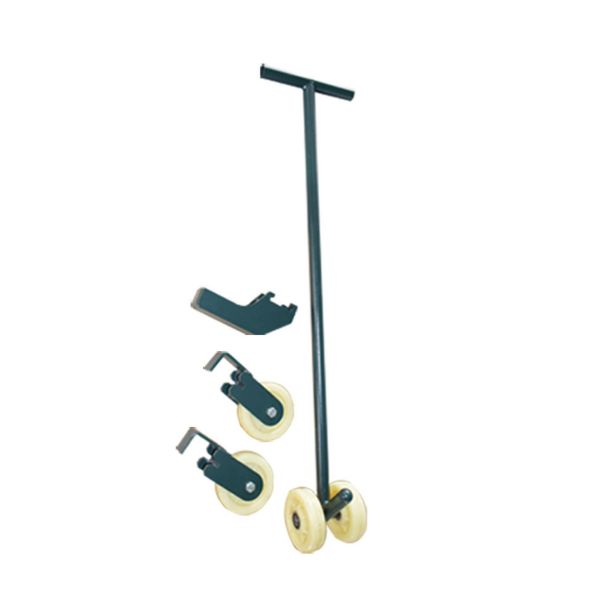

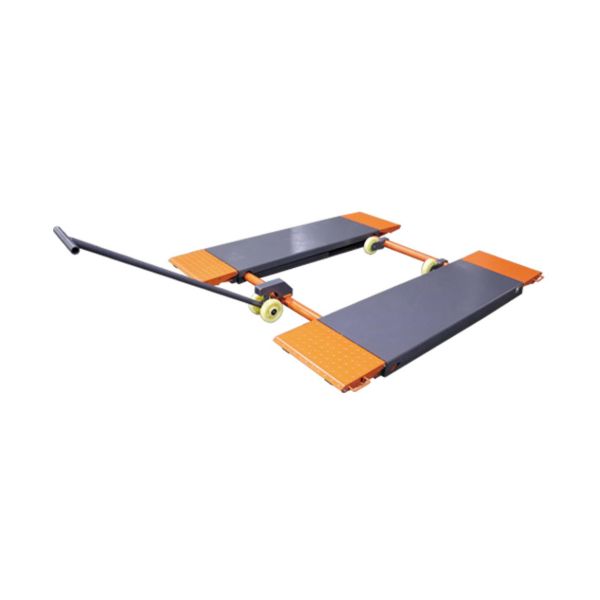

  • Standard with mobile kit makes the lift move in the garage easily.
  • Standard with aluminum motor power unit.
  • Standard with power arm to start the lift easier.

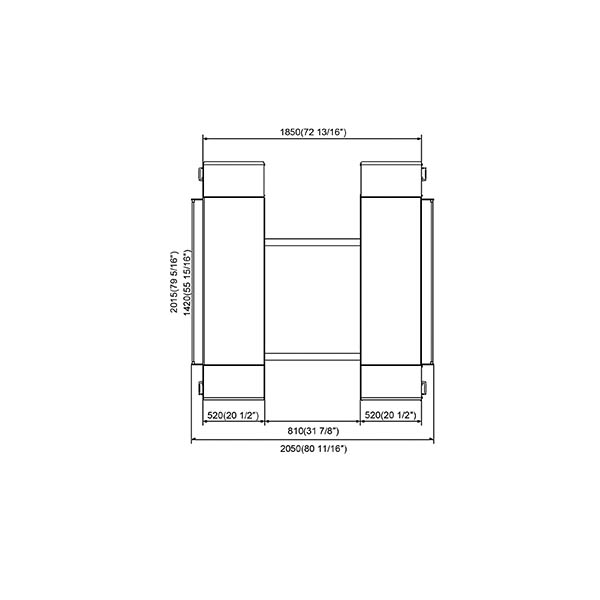

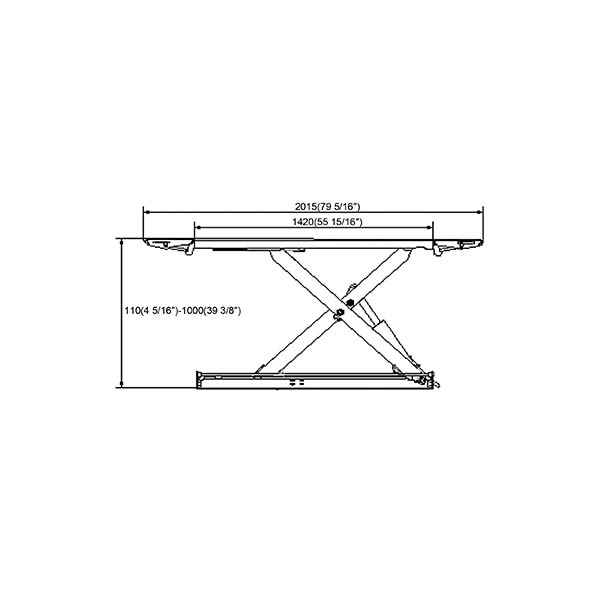

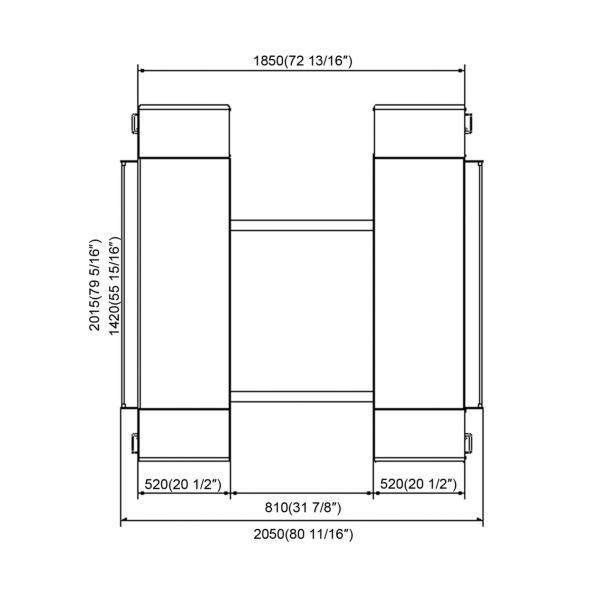

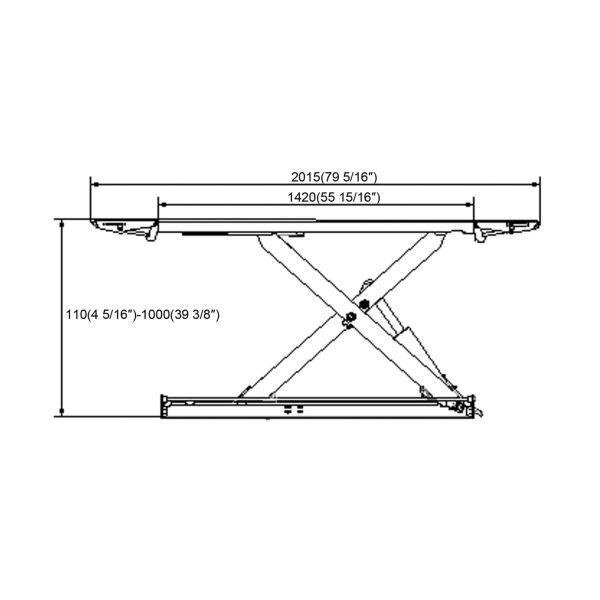

Model Lifting Capacity Lifting Time Lifting Height Minimum Height Runway Length Overall Length (Inc.Ramps) Runway Width Gross Weight Motor Power
7802L 3,500kgs (8,000LBS) ≤30S 1000mm (39 3/8”) 110mm   (4 5 /16”) 1420mm (55 7/8”) 2015mm (79 5/16”) 520mm (20 1/2”) 564kgs (1,243LBS) 2.2KW (3HP)

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.
  • Can be optional electric safety lock release.

Features and Benefits

  • Portable design and the lift can be moved easily.

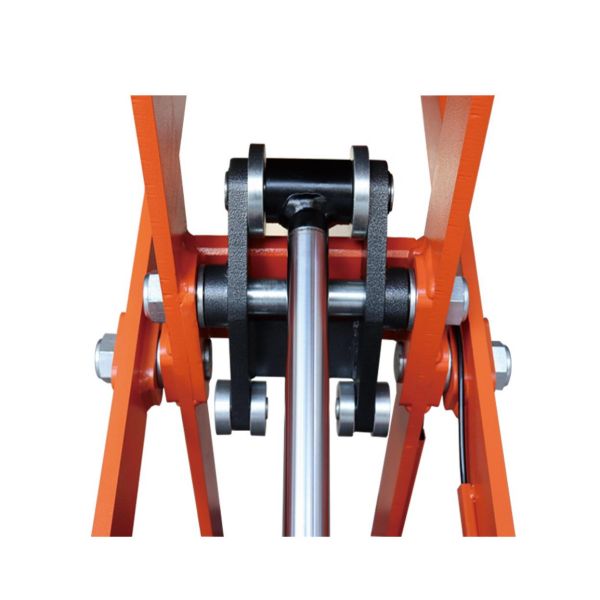

  • The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
  • The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
