ON-7440 Four Post Lift

Manual release for alignment use

4,000Kg (9,000LBS.) lifting capacity.
Reliable mechanical self-lock safety locking system.

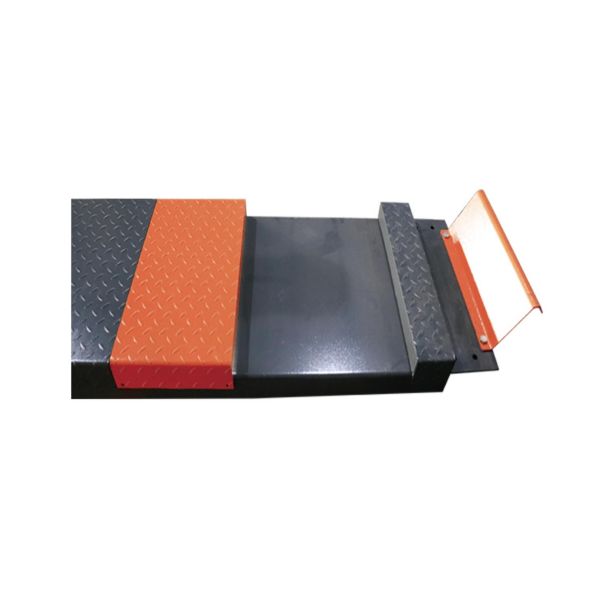

Long slip plate and adjustable turntable positions for wheel alignment use;
Manual release.
Max height limit switch to ensure the cylinders work within the stroke.
Skid proof diamond and low-profile platforms.
Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device.

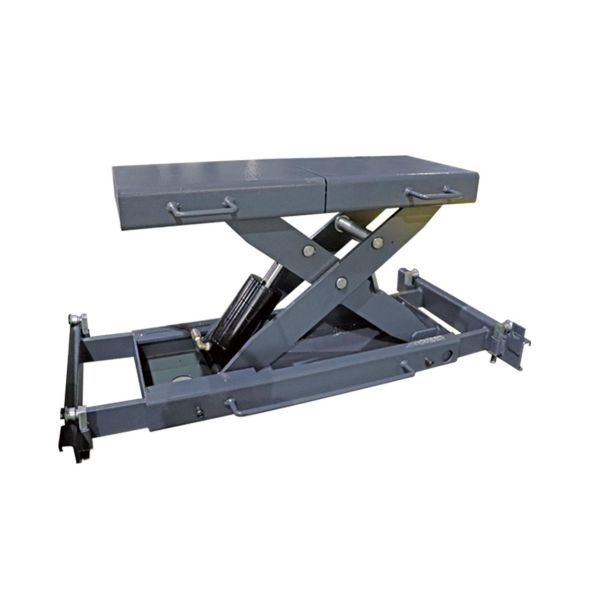

Optional manual or pneumatic rolling jack.

Request A Quote

TECHNICAL DATA:

Model	7440
Lifting Capacity	4,000kgs (9,000LBS)
Lifting Height	1770mm (69 11/16”)
Lifting Time	≤60S
Overall Height	2120mm (83 7/16”)
Overall Length (with Ramps)	5512mm (217”)
Overall Length (without Ramps)	4600mm (181 1/8”)
Overall Width	3350mm (131 7/8”)
Width inside Columns	3050mm (120 3/4”)
Shipping Weight	1050kgs (2,315LBS)

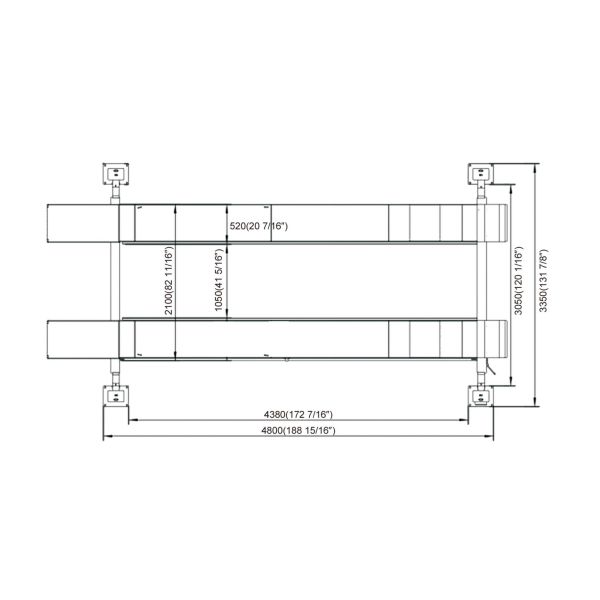

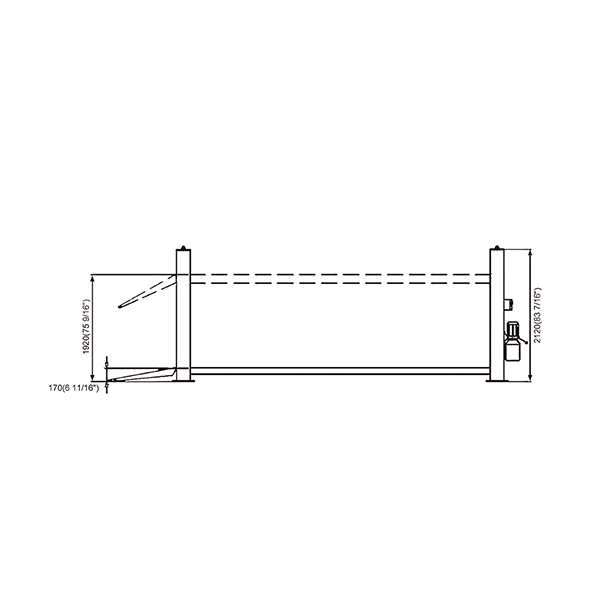

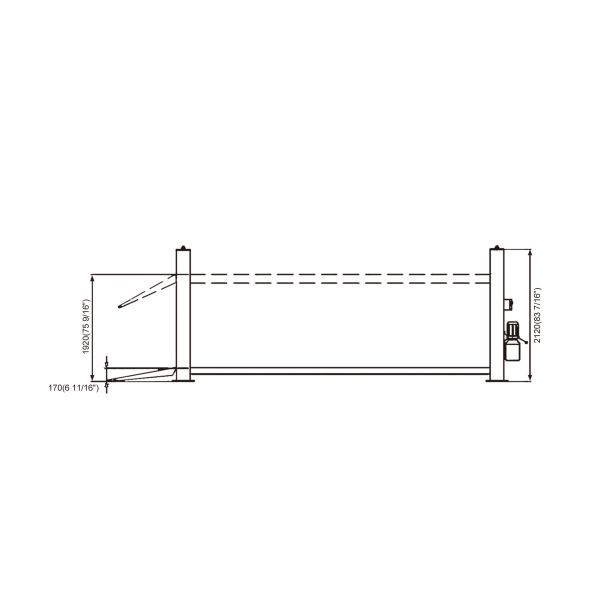

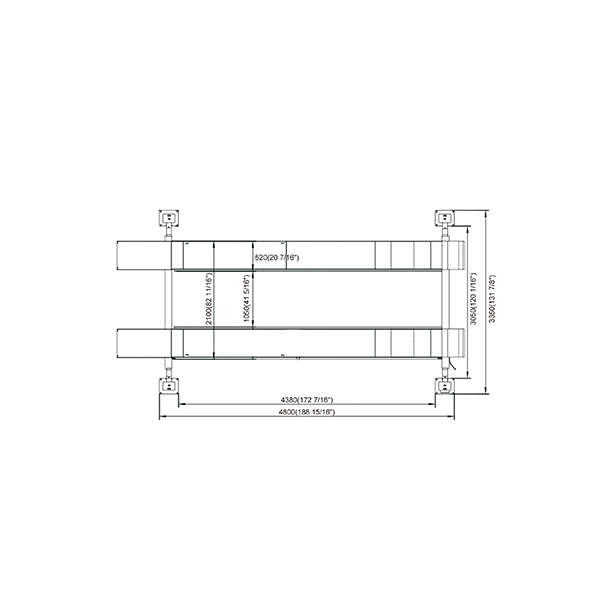

OVERALL DEMENSION:

7440-4-Post-Lifts

Custom Options

OEM/ODM service can be offered

Lift color can be offered as customer request.

Optional manual or pneumatic rolling jack.

Features and Benefits

The minimum ground height is 180mm(7 1/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors.

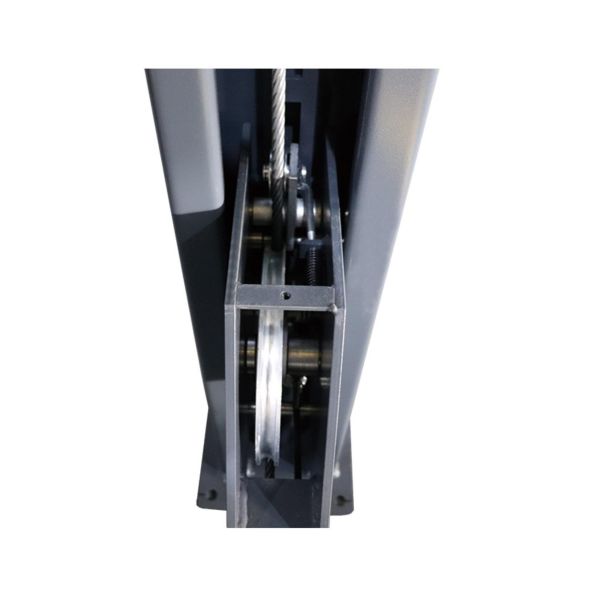

There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be effective to ensure the safety of use.

The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
