ON-7445E Four Post Lift

4.5Ton

Electrical release, four post lift.

Feature

  • 4,500Kg (10,000LBS.) lifting capacity;
  • Electrical release for easy and efficient use;
  • Reliable mechanical safety locking system, insure person and vehicle are safe;
  • Maximum height switch limits the travel of hydraulic cylinder and ensures hydraulic cylinders working within the stroke, prolong cylinder service life.
  • Standard the alarm buzzer help for safety descending;
  • 24 volt safety operation control system;
  • Low profile platformsis convenient for vehicle driving and off;
  • Optional manual or pneumatic rolling jack.
  • It has adopted 115% dynamic load capacity and 150% static load capacity test;
  • CE certificated.

TECHNICAL DATA:

Model                           7445E
Lifting Capacity 4,500kgs (10,000LBS)
Lifting Height 1770mm (69 11/16”)
Lifting Time ≤60S
Overall Height  2120mm (83 7/16”)
Overall Length (Inc.Ramps) 5512mm (217”)
Overall Length (No Ramps) 4600mm (181 1/8”)
Overall Width 3350mm (131 7/8”)
Width inside Columns 3050mm (120 3/4”)
Shipping Weight 1150kgs (2,535LBS)

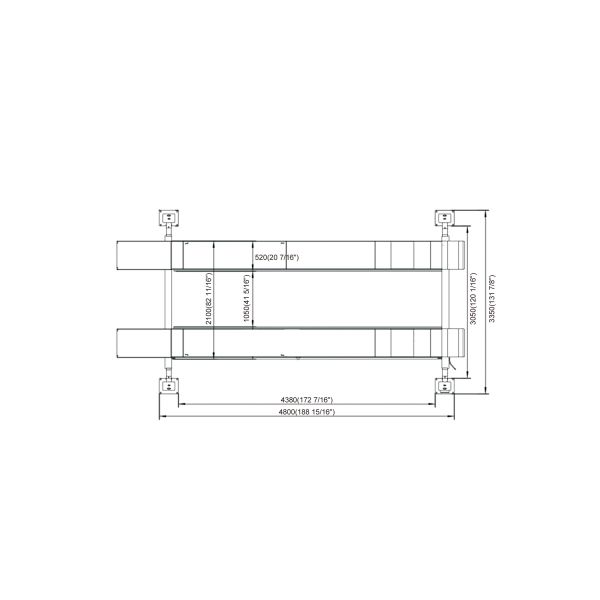

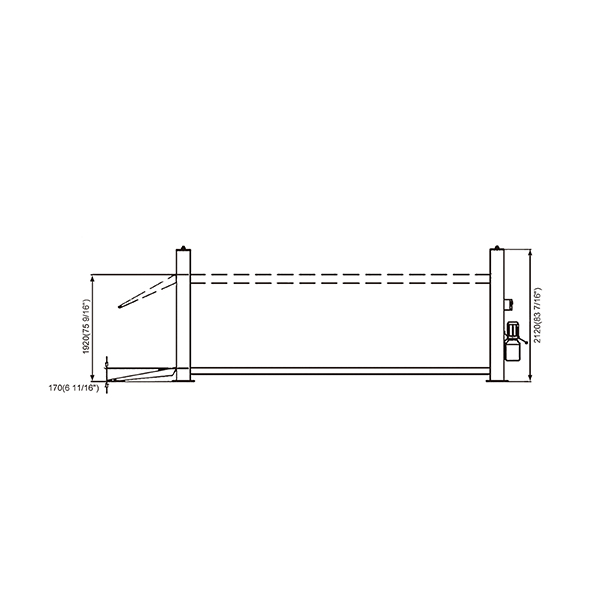

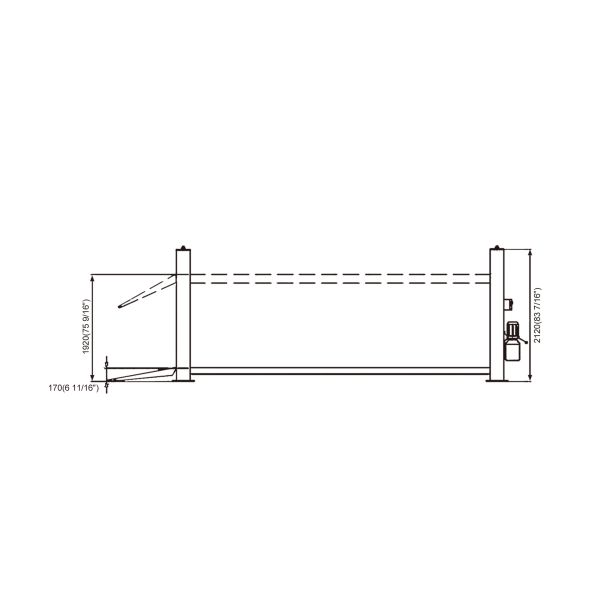

OVERALL DEMENSION:

7445E-4-Post-Lifts7445E-4-Post-Lifts

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.

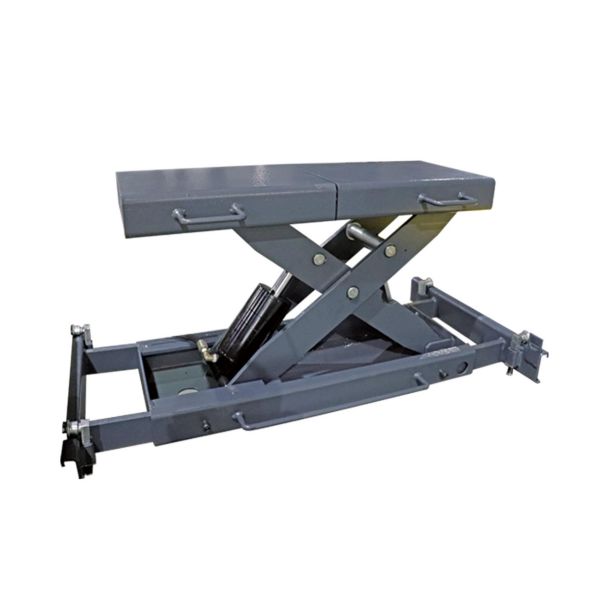

  • Optional manual or pneumatic rolling jack.

Features and Benefits

  • The minimum ground height is 180mm(7 1/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
  • The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors.

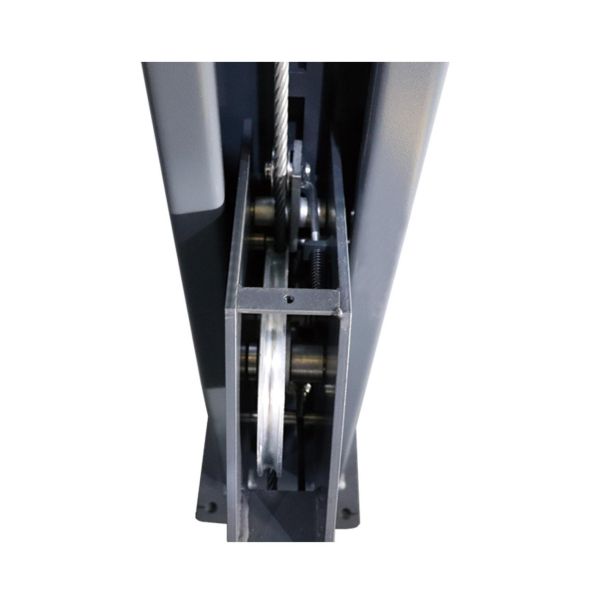

  • There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be effective to ensure the safety of use.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

Get Instant Quote in 24 Hours

Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:

35,000m² Vehicle lift production workshop.

Skillful technical research more than 5 years.

ISO 9001 quality management system certificated and CE approved by European Union.

Over 50 automatic production line equipments.

Professional Vehicle Lift Solutions.
