ON-7455 Four Post Lift


One side manual lock release, For alignment use.

  • 5,500Kg (12,000LBS.) lifting capacity.
  • Reliable mechanical self-lock safety locking system.
  • Manual safety lock release.

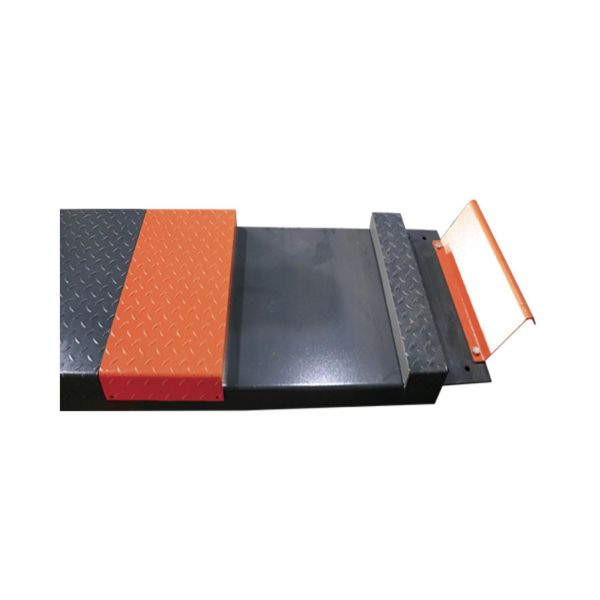

  • Long slip plate and adjustable turntable positions for wheel alignment use;
  • Max height limit switch to ensure the cylinders work within the stroke.
  • Skid proof diamond and low-profile platforms.
  • Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device.

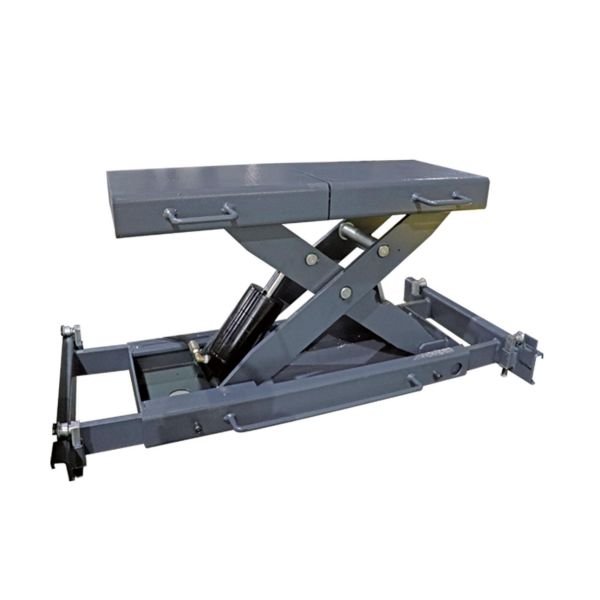

  • Optional manual or pneumatic rolling jack.


Model                             7455
Lifting Capacity 5,500kgs (12,000LBS)

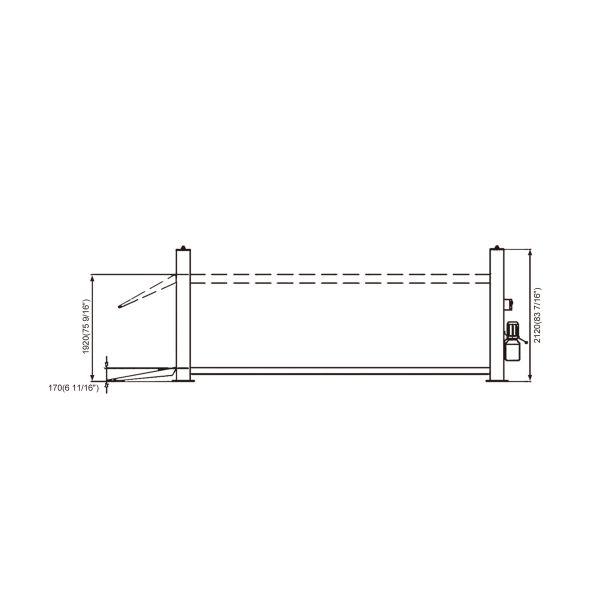

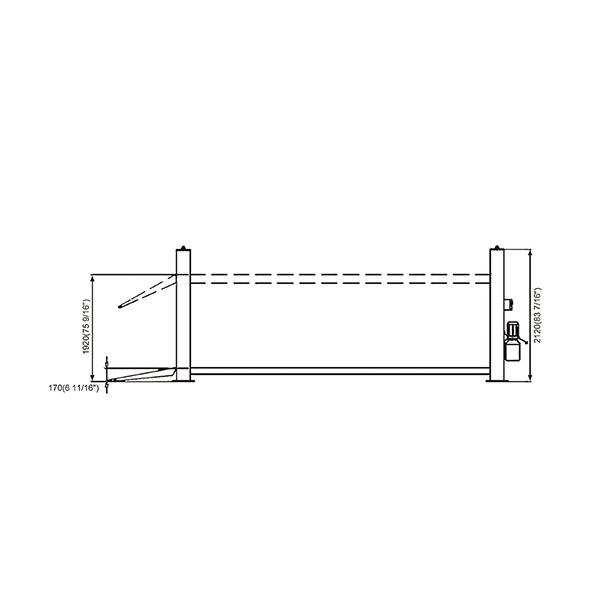

Lifting Height 1920mm (75 9/16”)
Lifting Time 60S
Overall Height 2120mm (83 7/16”)

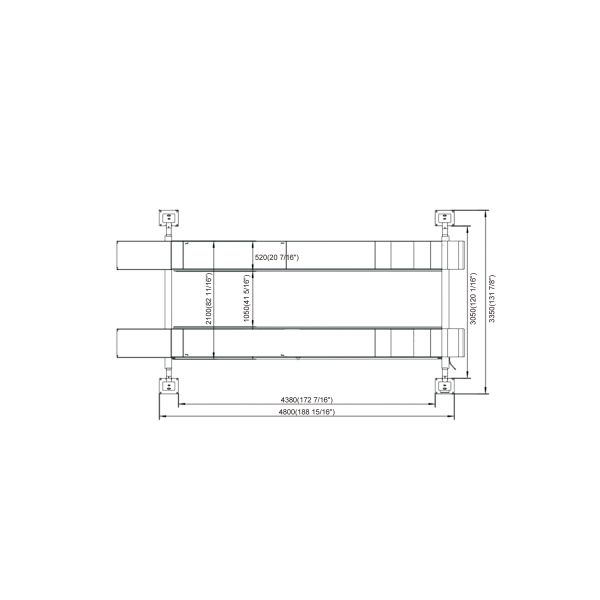

Overall Length (Inc.Ramps) 5812mm (228 13/16”)
Overall Length (No Ramps) 4900mm (192 15/16”)
Overall Width 3350mm (131 7/8”)
Width inside Columns 3050mm (120 3/4”)
Shipping Weight 1300kgs (2,866LBS



Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.
  • Optional manual or pneumatic rolling jack.

Features and Benefits

  • The minimum ground height is 180mm(7 1/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
  • The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors.

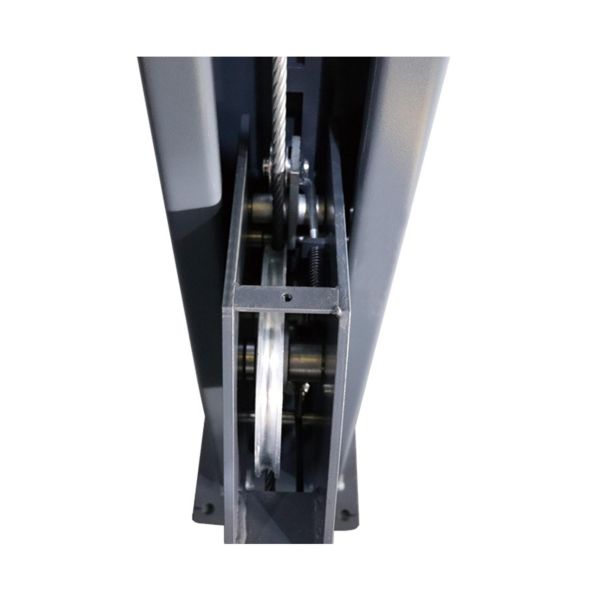

  • There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be effective to ensure the safety of use.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

Get Instant Quote in 24 Hours

Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:

35,000m² Vehicle lift production workshop.

Skillful technical research more than 5 years.

ISO 9001 quality management system certificated and CE approved by European Union.

Over 50 automatic production line equipments.

Professional Vehicle Lift Solutions.
