ON-7801  4.0T

Full rise scisor lift, Pneumatic release, Above-ground installation

  • 4,000Kg (9,000LBS.) lifting capacity.
  • 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms.

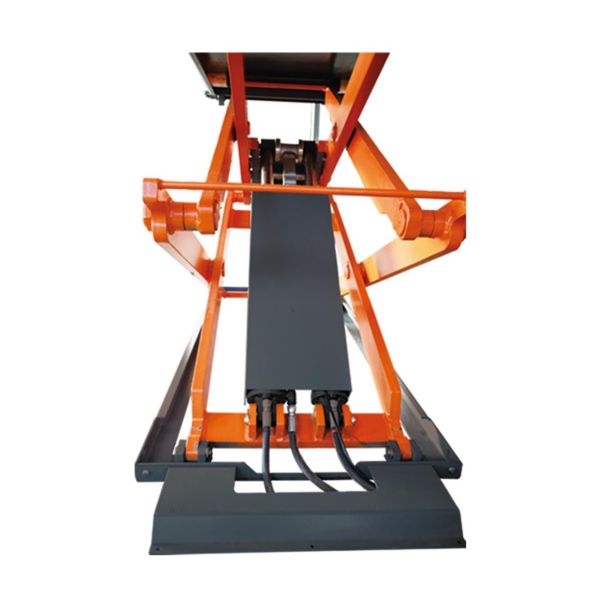

  • Durable cylinders with anti-surge valves.

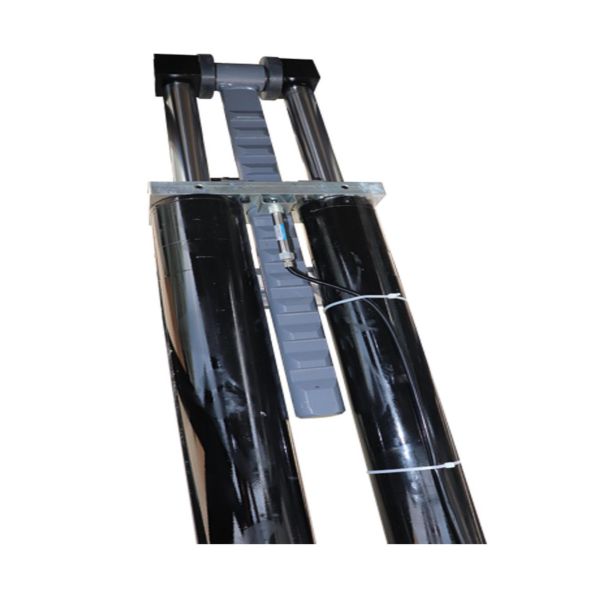

  • Pneumatic or electrical safety lock release system.
  • 24volt electrical control system.
  • Self-lubricated bushing and bearing.
  • Low profile design, min height is only 110mm (4 5/16”).
  • Standard with height limit switch.

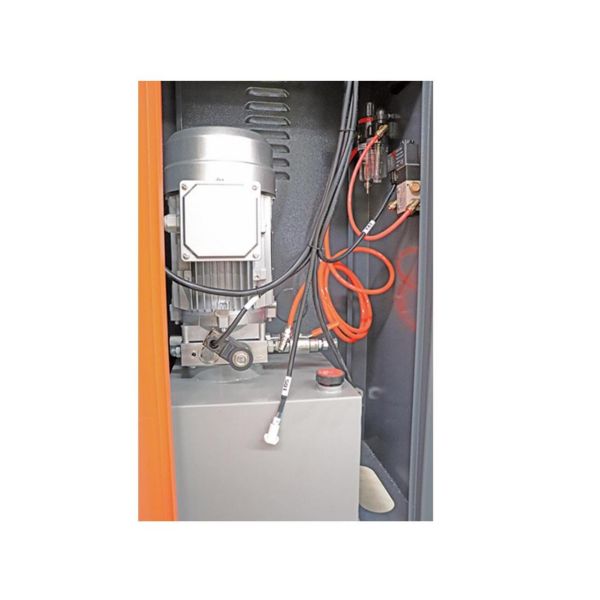

  • Standard with aluminum motor power unit.

TECHNICAL DATA:

Model                  7801 3.5T                  7801 4.0T
Lifting Capacity 3,500kgs (8,000LBS) 4,000kgs (9,000LBS)
Lifting Time ≤50S ≤50S
Lifting Height 1850mm (72 7/8”) 2040mm (80 5/16”)
Minimum Height 110mm   (4 5 /16”) 110mm   (4 5 /16”)
Runway Length 1465mm (57 11/16”) 1465mm (57 11/16”)
Overall Length (Inc.Ramps) 2085mm (82 1/16”) 2085mm (82 1/16”)
Runway Width 650mm (25 5/8”) 650mm (25 5/8”)
Shipping Weight 913kgs (2,013LBS) 973kgs (2,145LBS)
Motor Power 2.2KW (3HP) 3.0KW (4HP)

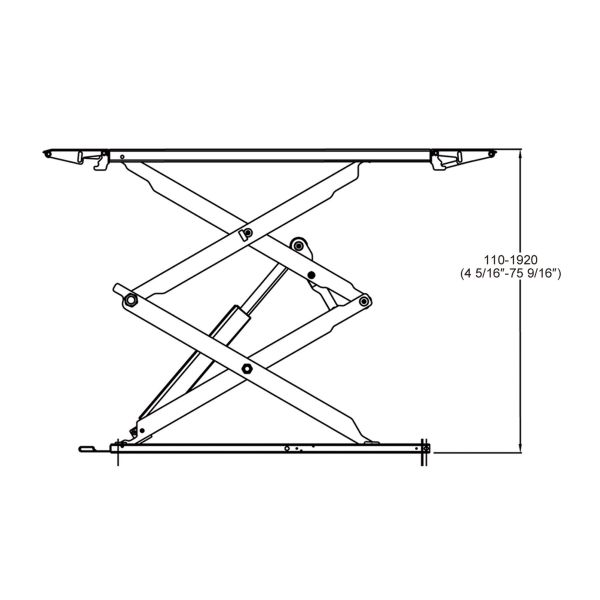

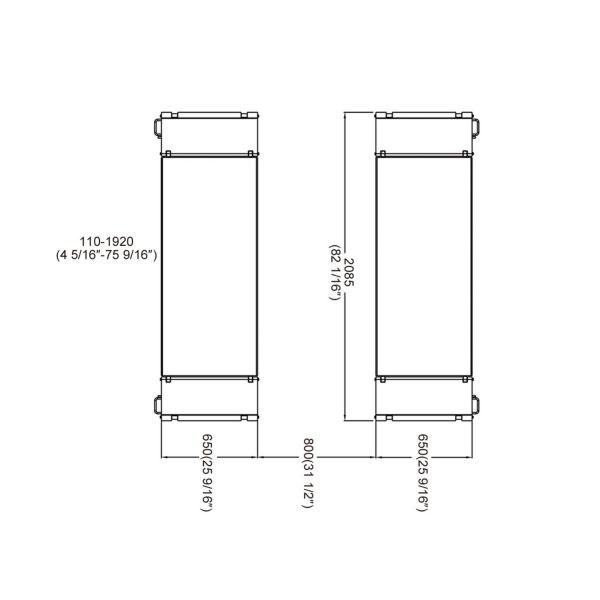

OVERALL DEMENSION:

7801-4.0-Full-Rise-Scissor-Lifts7801-4.0-Full-Rise-Scissor-Lifts

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.
  • Can be optional electric safety lock release.

Features and Benefits

  • Low profile design, min height is only 110mm (4 5/16”), suitable for low-chassis vehicles.
  • The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
  • Large diameter 2-Dual synchronous cylinder (master cylinder 80mm), easier to start, can effectively increase the service life of the hydraulic part; The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
