Manual Release Baseplate Two Post Lift ON-7224DK
4,500KG(10,000LBS)
One side Manual release and dual chain drive cylinders.
Feature:
- 4,200 (9,300LBS.) lifting capacity.
- 1900mm (74 13/16”) lifting height suitable for various operators.

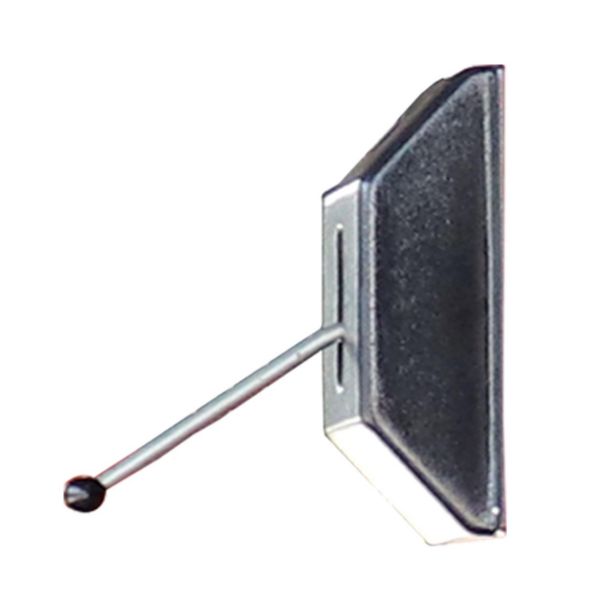

- One side manual release and 24-volt operation.
- Durable chain drive cylinder in each column carries with anti-surge valves.

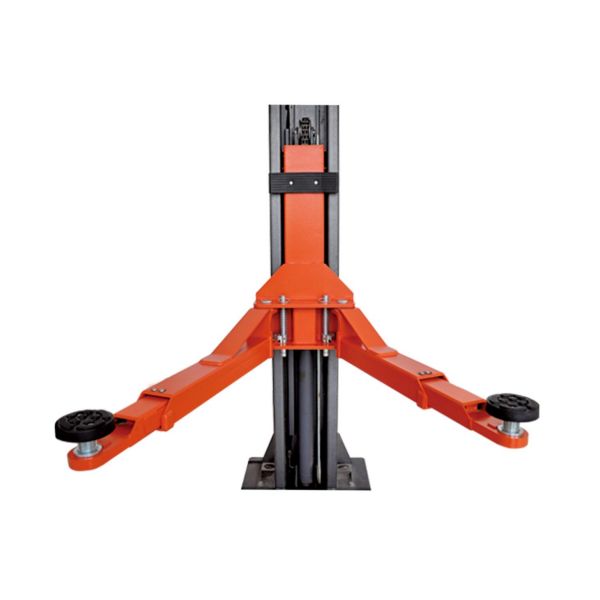

- Standard with 4 two-stage lifting arms.

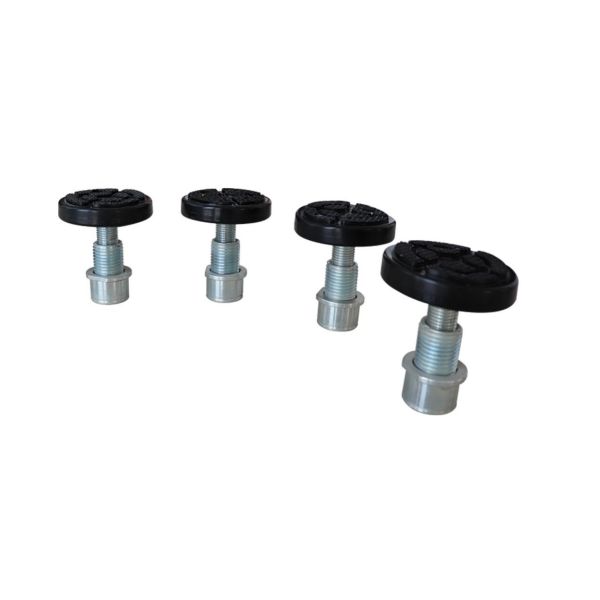

- Screw-up rubber pads with min height 95mm (3 3/4”).
- Standard with high limit switch.

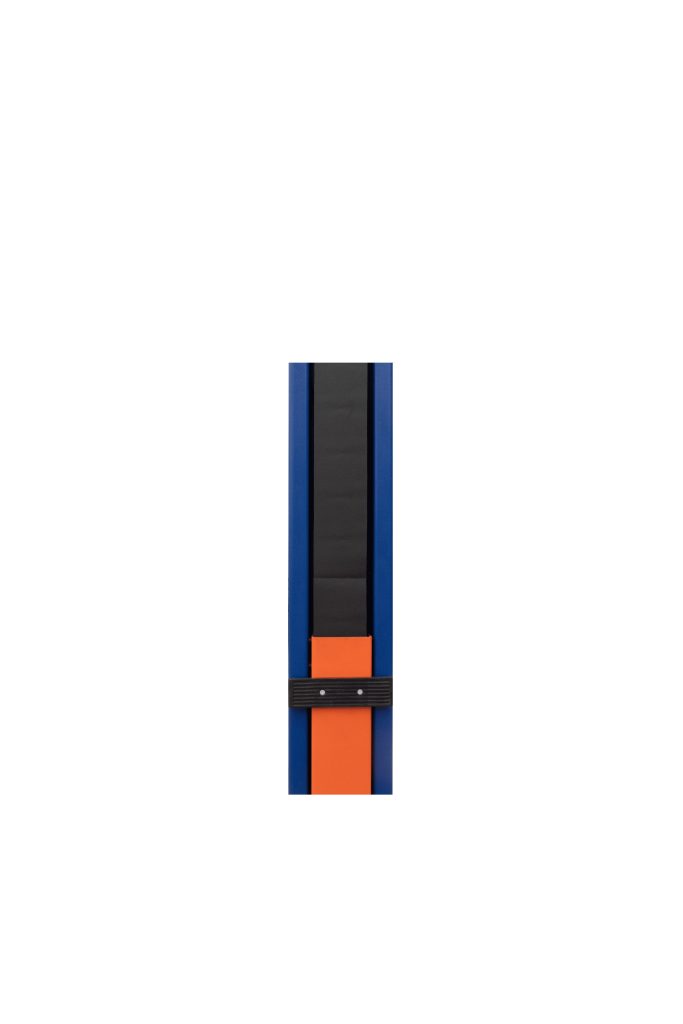

- Standard with curtain inside column and foot guard.

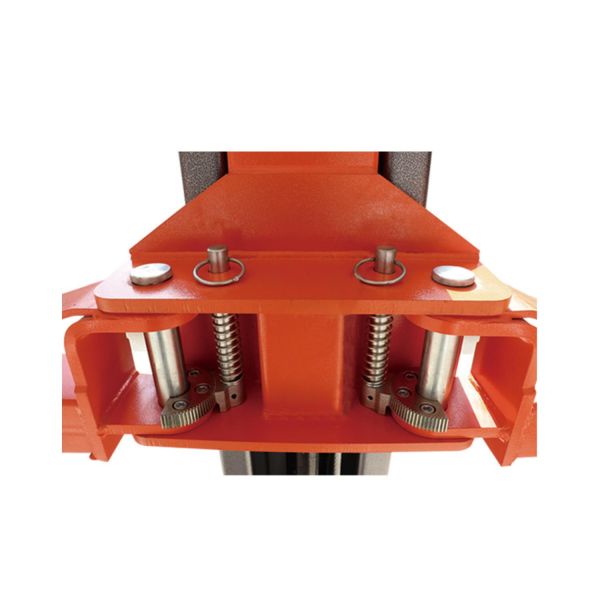

- Automatic arms restraints.
- Professional powder coating.
- CE certified.
Description
The ON-7224DK Manual Release Baseplate Two Post Lift is a durable and efficient lifting solution designed for repair garages, tire shops, and service stations handling light commercial vehicles, SUVs, and sedans. With a lifting capacity of 4.5 tons, this model is ideal for everyday use in workshops where low ceiling height limits the use of overhead lifts. Its manual locking system and baseplate design make it perfect for tight spaces while keeping maintenance simple and affordable.
Perfect for Compact Garages and Everyday Vehicle Repairs
This lift offers a practical solution for workshops that need strong lifting power without complicated electronics. The manual release baseplate two post lift is well-suited for undercarriage work, tire rotation, suspension service, and regular inspections. Its 1900mm lifting height gives mechanics easy and safe access under the vehicle while the one-side manual release keeps operation straightforward and dependable.
Looking for an electric lock version? Check out our electrical lock release baseplate two post lift here.
Safety and Stability of Manual Release Baseplate Two Post Lift
The ON-7224DK features dual chain drive cylinders, automatic arm restraints, and a 24V control system to ensure smooth lifting with operator safety. It comes standard with two-stage lifting arms, screw-up rubber pads, and built-in foot guards. The professional powder-coated finish provides long-term protection in demanding garage environments. Whether you’re running a busy auto service center or a small repair shop, this manual release baseplate two post lift delivers top-tier performance with minimal complexity.
Certified for Your Confidence
All our two post lifts, including the ON-7224DK, are CE certified, meeting international safety and quality standards for peace of mind in every lift.
TECHNICAL DATA:
| Model | ON-7224DK/4.5 |
| Lifting Capacity | 4,500kgs (10,000LBS) |
| Lifting Height | 1900mm (75 13/16”) |
| Lifting Time | 55S |
| Overall Height | 2826mm |
| Minimum Height | 95mm (3 3 /4”) |
| Overall Width | 3410mm (134 1/4”) |
| Width inside Columns | 2850mm (112 1/4”) |
| Motor Power | 2.2KW (3HP) |
| Shipping Weight | 650kgs |
Learn More and See It in Action
For setup help, product guidance, or a factory tour—visit our official YouTube channel. You’ll find video walkthroughs, demonstrations, and behind-the-scenes looks at how we design and build high-performance lifts for professionals worldwide.

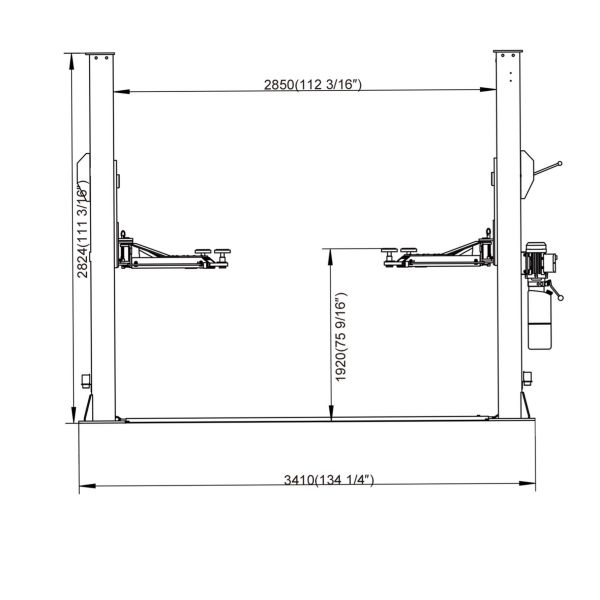

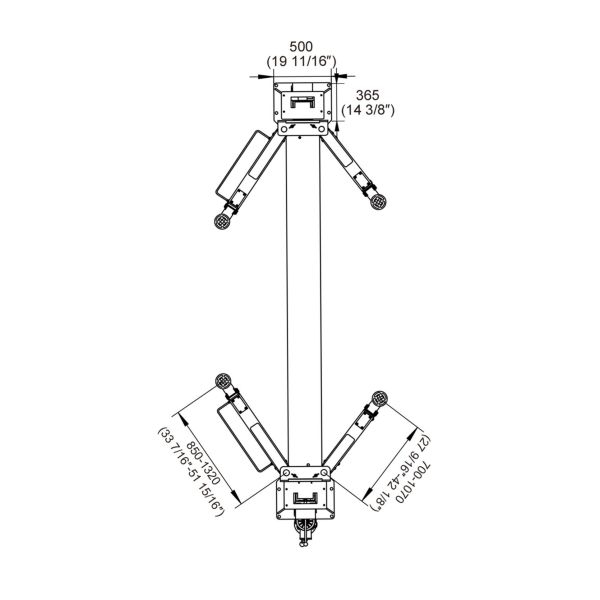

OVERALL DIMENSION:
Custom Options
- OEM/ODM service can be offered
- Lift color can be offered as customer request.

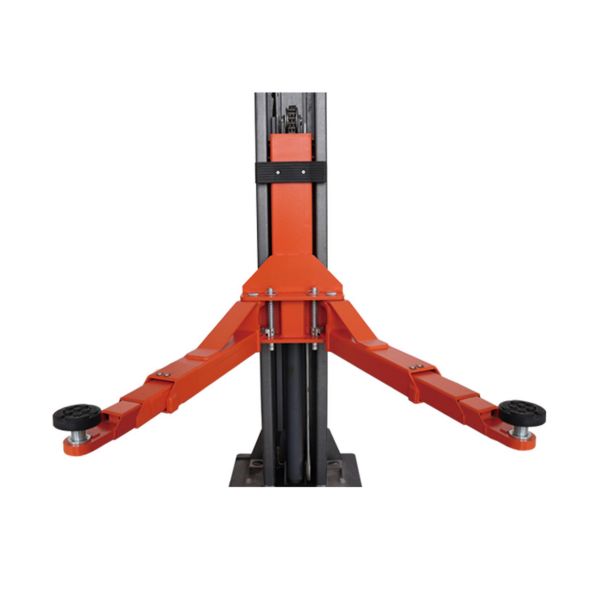

- Optional three-stages lifting arms.

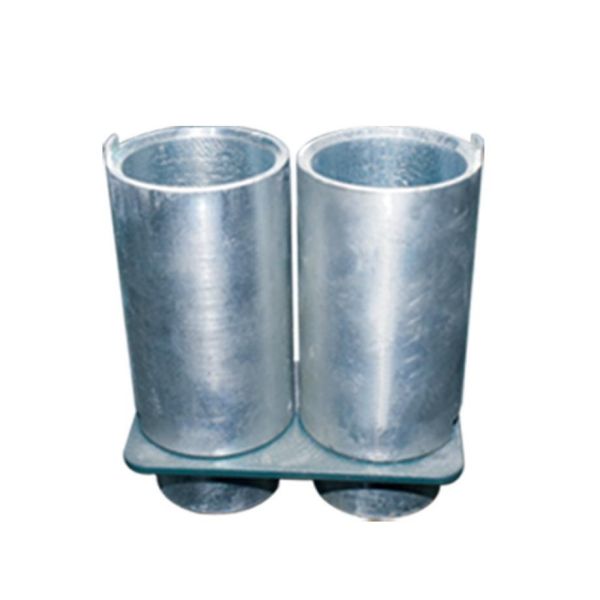

- Optional 70mm(2 3/4”) and 100mm(3 15/16”) extension adapters.
Get Instant Quote in 24 Hours
Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:
35,000m² Vehicle lift production workshop.
Skillful technical research more than 5 years.
ISO 9001 quality management system certificated and CE approved by European Union.
Over 50 automatic production line equipments.
Professional Vehicle Lift Solutions.
