One side Manual release and dual chain drive cylinders.
Feature:
- 5,000Kg (11,000LBS.) lifting capacity.
- 1810mm (75 9/16”) lifting height suitable for various operators.
- One side manual release and 24 volt operation.
- Durable chain drive cylinder in each column carries with anti-surge valves.
- Standard with 4 three-stage lifting arms.
- Screw-up rubber pads with min height 95mm.
- Standard with high limit switch.
- 70mm or 100mm extension adapters optional.
- Standard with curtain inside column and foot guard.
- Automatic arms restraints.
- Professional powder coating.
- CE certificated.
TECHNICAL DATA:

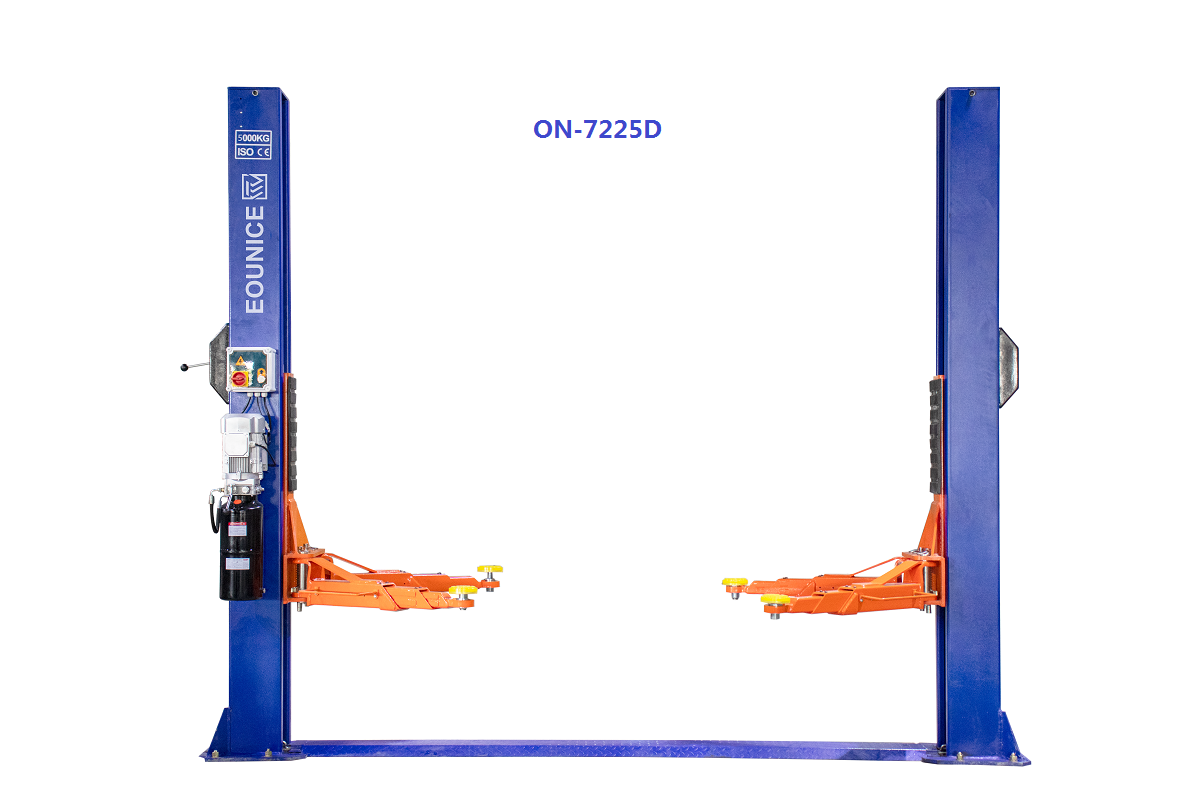

| Model No | ON-7225D |
| Lifting Capacity | 5,000(11,000) |
| Lifting Time | ≤55s |
| Lifting Height | 1810mm(71 1/4″) |
| Min Height | 95mm(3 3/4″) |
| Overall Height | 2876mm(113 1/4″) |
| Width Between Columns | 3000mm(118 1/8″) |
| Overall Width | 3570mm(140 9/16″) |
| Motor Power | 2.2kw |
| Gross Weight | 773kg(1,704LBS) |
OVERALL DEMENSION:
DETAILS:
Custom Options
- OEM/ODM service can be offered
- Lift color can be offered as customer request.
- Optional three-stages lifting arms.
- Optional 70mm(2 3/4”) and 100mm(3 15/16”) extension adapters.
Features and Benefits
- The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4”), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
- The cover plate is ultra-thin design, the height from the ground is only 33mm(1 5/16”), the vehicle is easier to pass;
- The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8”) from the shaft end, which can effectively prevent the pulley from coming out.
- The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
- Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
